Optimized Parting and Grooving Line
Features and Benefits
- Ideal for small component and shallow-to-medium depth of cut parting & grooving.
- Vibration minimized due to the insert’s shorter length and improved center of gravity.
- 25-30% lower price compared to longer parting & grooving inserts!
- New single-end inserts allows 20% deeper groove capability.
- New Swiss holder sizes provide excellent performance at a very attractive price.
- Optimized holder pocket design for better clamping.
- Two unique chip breakers for general purpose or special materials.
Product Ranges & Details

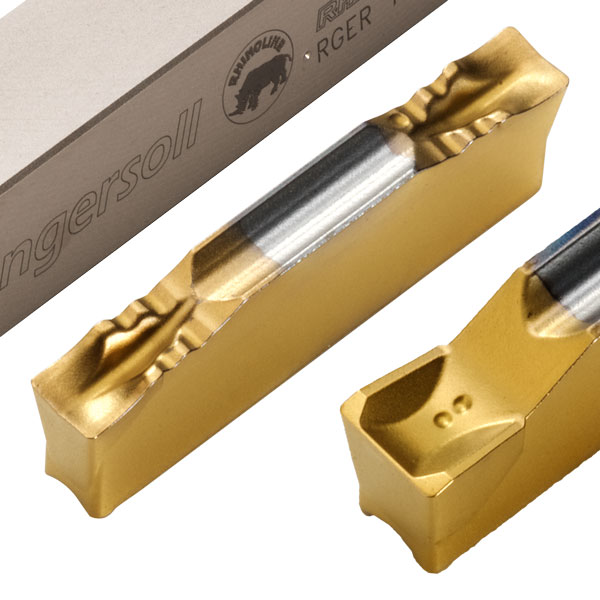

Single & Double-Ended Inserts
Insert Widths
.079” (2mm)
.118” (3mm)
Insert Length
.551” (14mm)
Maximum Groove Depth
Double end inserts: .512” (13mm) per side
Single end inserts: Up to .630” (16mm) per side, depending on holder being applied
Chip Breakers
C type – For general purpose and heavier feed rates
J type – For soft & gummy materials and lower feed rates
Grades
TT7220
TT9080
TT8020

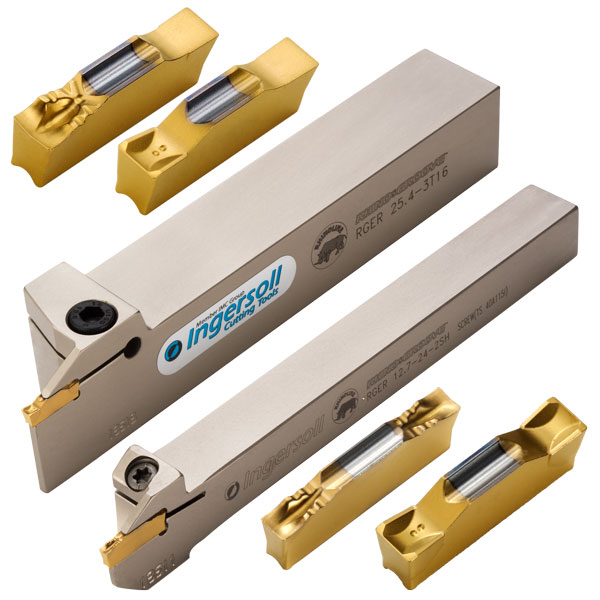

Holders (Right and Left Hand)
Standard: .625”, .750”, 1.000”
Swiss: .500”, .625”, 12mm, 16mm
