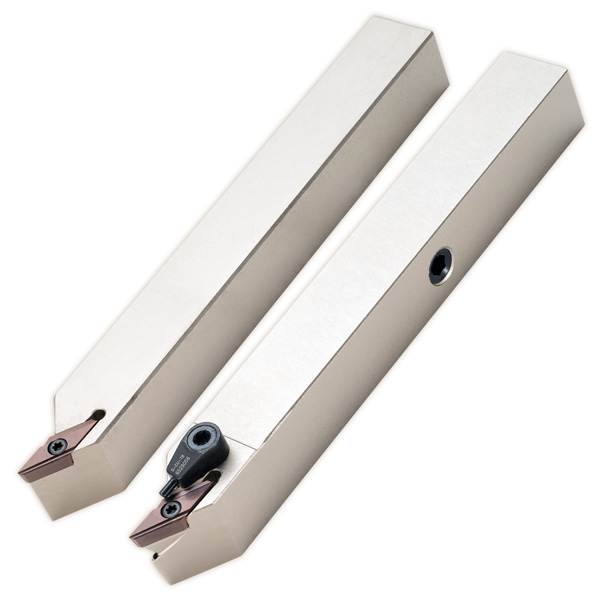

Series TMB Back Turning Holders and Inserts for Swiss Automatic Machines

Features and Benefits

• Make it possible to plunge and turn features that exist behind larger diameters on the work piece.
• The holder/insert positioning is located away from the guide bushing and allows finish machining to be performed without retracting the work piece from the guide bushing.
• A specialized insert edge geometry enables high precision, and wiper geometry provides excellent surface roughness.

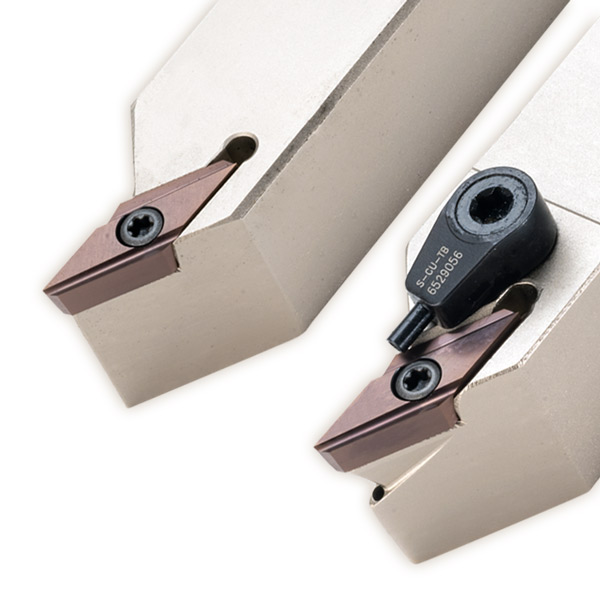

• All holders use BTVC inserts that feature a 35-degree included angle, wiper geometry, a sharp cutting edge and a maximum reach of .283 (7.2mm) per side.
• A popular option for small size component machining in industries ranging from automotive and medical to semiconductor manufacturing.
