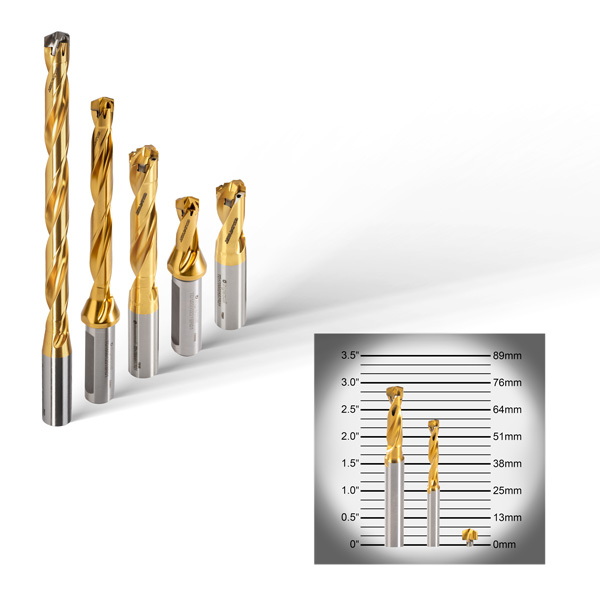

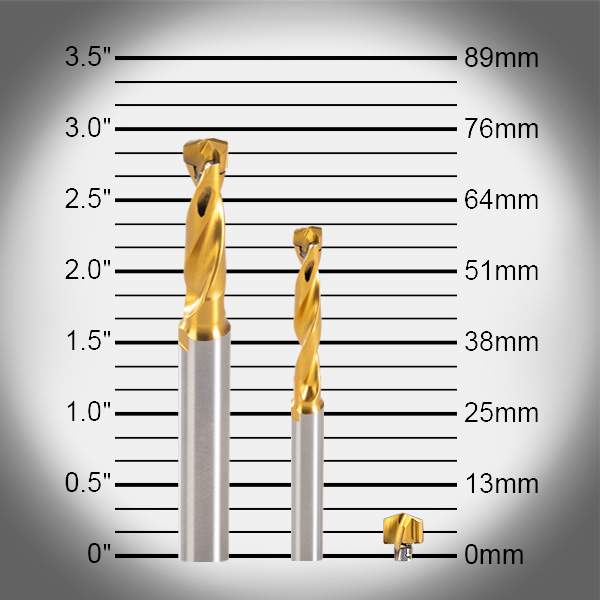

closeup shot group shot

The Gold Standard for Replaceable-Tip Drills Now with Small Diameter Expansion for Improved Productivity & Reduced Cost

Product Line Expansion
☆ = NEW

Features and Benefits

  • Bodies:
  • Twisted coolant holes with optimum flute design
  • Thru hardened for strength
  • PVD TiN coated for prolonged body life
  • Polished flute for smooth chip evacuation
  • Innovative quick change system
  • Positive stop insert pocket
  • Tips:
  • Expanded diameter range for steel applications (.1575"-.2323"/4.0-5.9 mm)
  • Wide range of material specific geometries for increased productivity
  • Close tolerance (+.002"/-.000") on diameter
  • IN2505 (PVD TiAlN/TiN) coating for incredible performance
  • IN05S (uncoated/polished) for non-ferrous specific applications
  • Special diameters available upon request

Product Ranges & Details

Diameter Range
.1575"-.2323" (4.0-5.9 mm)
.1575"-1.0197" (4.0-25.9 mm)

Bodies
1.5xD, 3xD, 5xD, 8xD, and 12xD
Inch and metric shanks
Universal flat & cylindrical

Tips
TPC (Self-Centering) - Steel/Cast Iron
TPA - Steel
TMA - Stainless Steel
TKA - Cast Iron
TNA - Non-Ferrous
TPF (Flat Bottom)

Grades
IN2505 (PVD TiAlN/TiN)
IN05S

Applications
Die & Mold, General Purpose, Aerospace, Automotive, Shipbuilding, Heat Exchangers, Agriculture

Materials:
Steel
Stainless Steel
Cast Iron/Iron
Non-Ferrous (Aluminum)
