New High Performance Solid Carbide Drills for Steel & Nickel Based Alloys

Features and Benefits

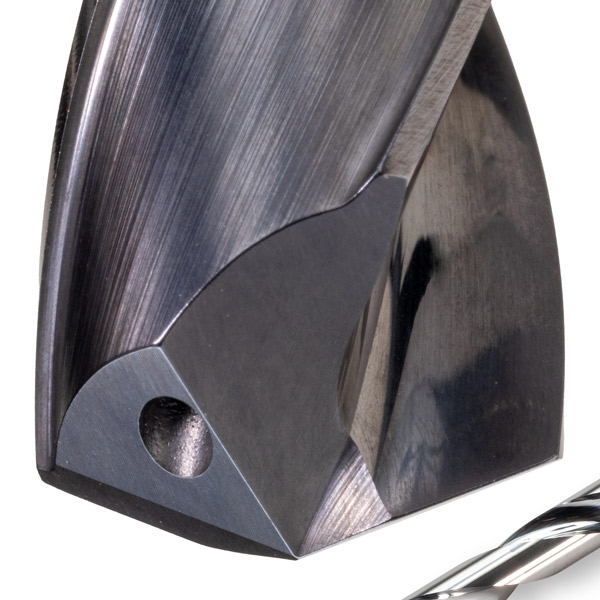

• 135° split-point geometry achieves superior drill penetration and accuracy
• Double margin design enhances stability and straightness.
• Coolant-thru to keep the cutting edge cool and improve chip evacuation
• Polished chip flutes ensure chip evacuation during deep hole drilling
• Specialized coating provides lower friction and reduces tool wear and longer tool life while reducing the risk of chipping and cracking
• No pecking required for deep hole drilling
• For 40xD and 50xD drills, an intermediate 20xD drill is required

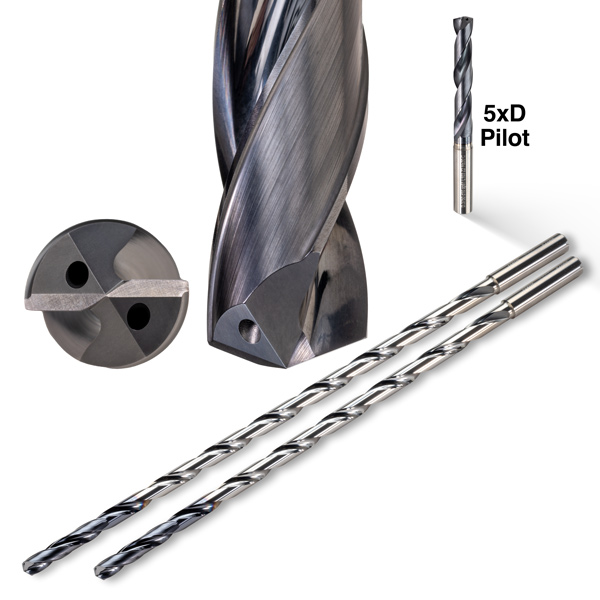

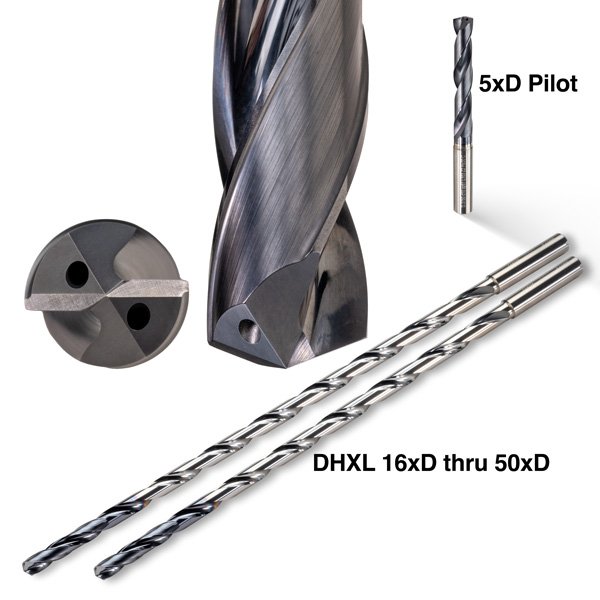

• Series: DP Pilot 5xD: Drill Dia Range: 3mm-20mm
  Series: DHXL 16xD: Drill Dia. Range: 3mm-16mm
  Series: DHXL 20xD: Drill Dia. Range: 3mm-14mm
  Series: DHXL 25xD: Drill Dia. Range: 3mm-12mm
  Series: DHXL 30xD: Drill Dia. Range: 3mm-10mm
  Series: DHXL 40xD: Drill Dia. Range: 3mm-18mm
  Series: DHXL 50xD: Drill Dia. Range: 4mm-6.35mm
