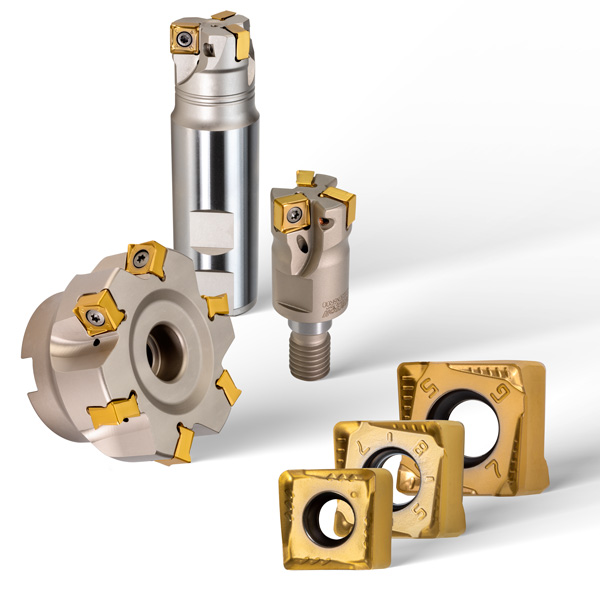

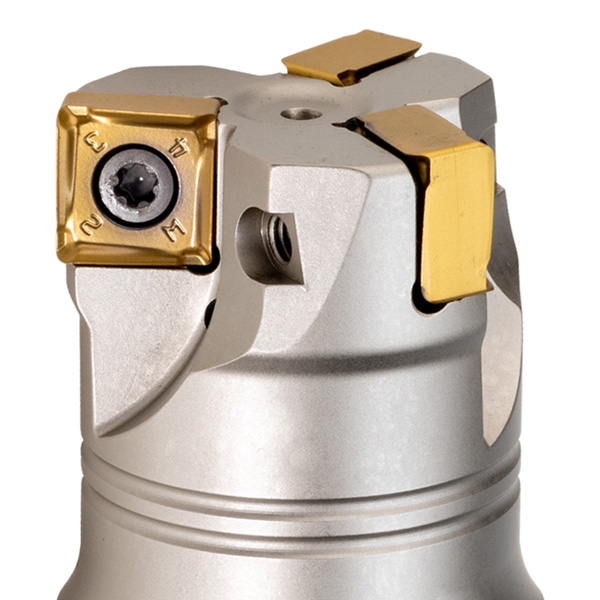

closeup shot group shot

True 90° Shoulder Mills with 8-Edge Economy

Product Line Expansion
☆ = NEW

Features and Benefits

  • High axial rake reduces cutting loads and promotes smooth machining.
  • 07 & 10 mm inserts generate true 90° and are optimized to step down axially with minimal mismatch.
  • 12 mm Insert generates true 90° up to .33 depth of cut.
  • Unequally spaced insert placement aids to diffuse vibration.
  • Integrated wiper flats produce 32-63 Ra finishes.
  • Medium and fine-pitch cutters compliment the geometry for premium performance.

Product Ranges & Details

Cutter Series (Depth of Cut):
7mm: 1DJ1E / DJ5E / DJ6E (.19")
10mm: 1DJ1R / DJ5R / DJ6R (.27")
12mm: DJ5G / DJ6G (.33")

Insert Series:
SQGU07
SQGU10
SQGU12
SQXU12

Diameter Range:
.625" - 6.000" (16 - 50 mm)

Lead Angles:
90°

Corner Radius:
0.031"

Materials:
Steel
Stainless Steel
Cast Iron/Iron
High-Temp Alloys/Titanium
Hardened Steel
