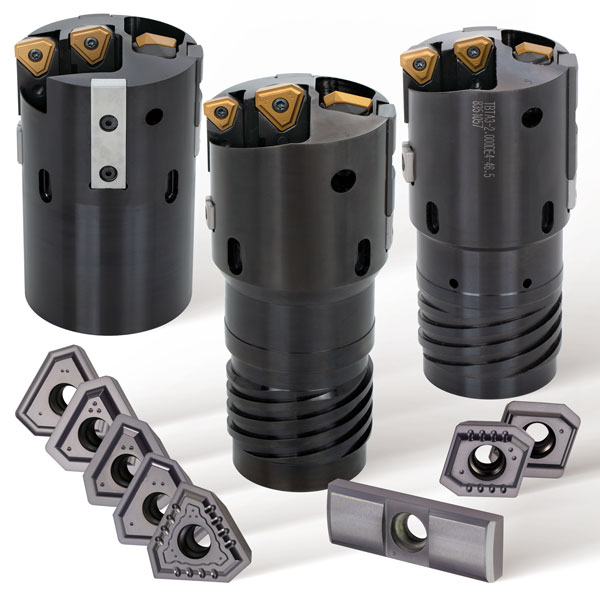

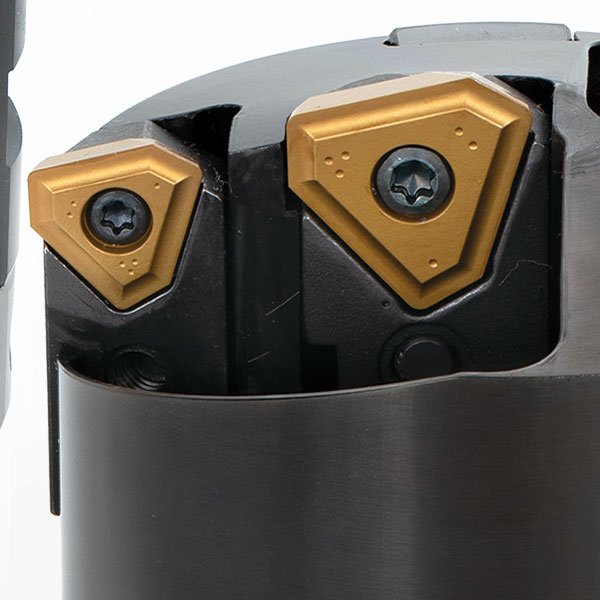

Indexable Cartridge BTA Heads Upgraded for Improved Performance & Productivity
Features and Benefits
- Additional Guide Pad Option: A third guide pad pocket has been added, enabling full-range application flexibility.
- Enhanced Coolant Performance: Increased clearance and flow improve cooling efficiency for demanding operations.
- Thread Update: Prevents body pull-out under specific conditions (external thread up to approx. φ65), ensuring safer and more reliable performance.
- Faster Insert Replacement: Updated wrench design reduces insert change time, improving operational efficiency.
- Higher Body Hardness: Increased durability for heavy-duty applications, extending tool life
Product Ranges & Details
Drilling Range
1.496–9.173" (38mm–233mm)
Thread Types
STS Outer four start thread
STS Inner single start thread
DTS Outer four start thread
Insert Grades
IN6542, IN2005, IN1510, IN2510, IN2004
Chipbreakers
R-G - For General Use
R-B - For High-Temp/Stainless
R-BG – For Long Chipping Steels
R-DT – For Reducing Cutting Forces
Guide Pads*
(CD): Brazed Carbide
IN2040 (CD-SA): Solid Carbide – High Wear Resistance
IN2005 (CD-SB): Solid Carbide – High Toughness
IN2030 (CD-SC): Solid Carbide – Higher Toughness
*Guide Pads and Inserts must be purchased separately
