Chipbreakers on PCD-tipped Inserts for Machining Non-Ferrous Materials
New Product Line☆ = NEW
Features and Benefits
- Laser-etched chipbreakers provide excellent chip control from roughing to finishing applications
- CF chipbreaker improves chip control at depths of cut as low as .004" ☆
- CB chipbreaker features serrated cutting edge to maximize chipping resistance and reduce cutting forces
- PCD grade TD1020 offers a good balance of wear resistance and toughness for a wide range of non-ferrous material machining
Product Ranges & Details

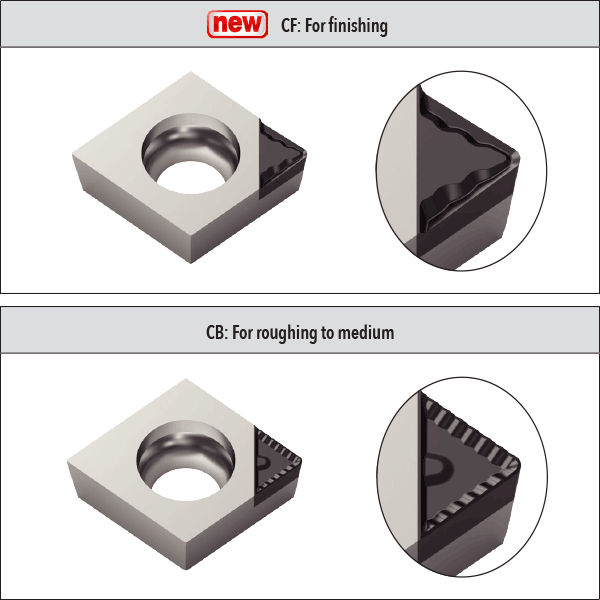

Chipbreakers
CF – Finishing ☆
CB – Medium to Roughing

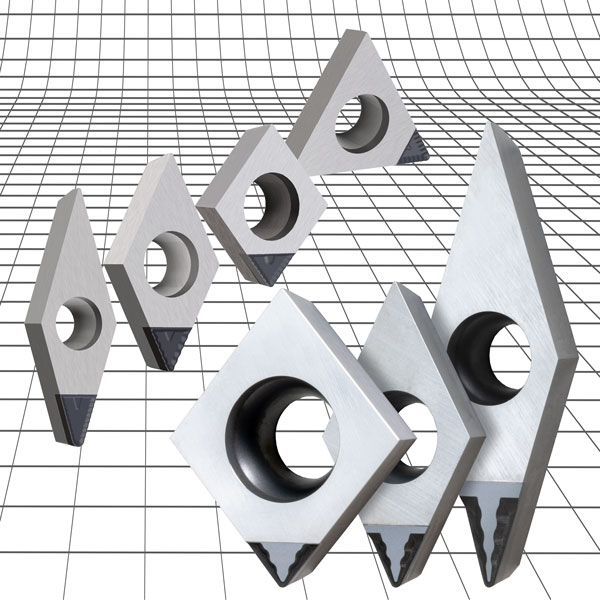

Insert Shapes/Sizes
CCGT 21.51, 32.50.5, 32.51, 32.52, 431, 432
DCGT 21.50.5, 21.51, 32.50.5, 32.51, 32.52
VCGT 220.5, 221, 331, 332, 333
TCGT 731, 21.51, 32.51
CF Chipbreaker DOC Capabilities
CCGT: .004–.039" ☆
DCGT21.5x: .004–.039" ☆
DCGT32.5x: .004–.059" ☆
VCGT33x: .004–.079" ☆
CB Chipbreaker DOC Capabilities
CCGT21.5x: .020–.059"
CCGT32.5x: .020–.079"
CCGT43x: .020–.079"
DCGT21.5x: .020–.059"
DCGT32.5x: .020–.098"
VCGT22x: .020–.079"
VCGT33x: .020–.138"
TCGT73x: .020–.059"
TCGT21.5x: .020–.079"
TCGT32.5x: .020–.079"
Grade:
TD1020
