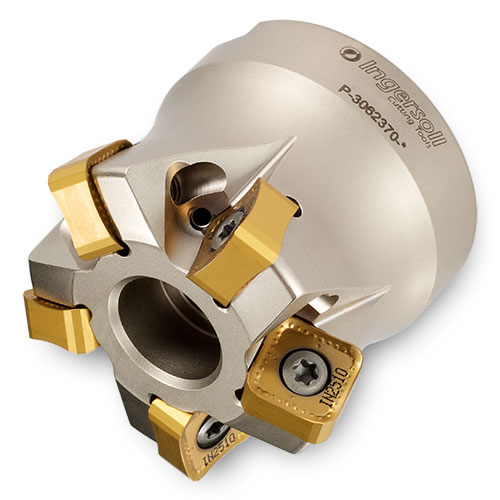

Series: DD6H - Hi-Feed Face Mill
Product Series Features:
- Ø2.000-6.000"
- 12 mm Insert with 8 indexes
- .065" Depth of cut
- Great price-per-edge economy!
EDP |
Part Number |
DCX Cutting Dia. Max. |
DC Cutting Dia. |
OAL Overall Length |
ZEFF Eff. Teeth |
REEQ Program Radius Equivalent |
DCON Bore Dia. |
KWW Keyway |
CSP Coolant |
RMPX Ramp Angle Max. |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2901667 | DD6H-20R01 | 2.000 | 1.252 | 1.650 | 5 | 0.155 | 0.750 | 0.31 | Yes | 1.10 | NA | |||
| 2904096 | DD6H-25R01 | 2.500 | 1.749 | 1.650 | 6 | 0.155 | 0.750 | 0.31 | Yes | 0.90 | NA | |||
| 2901671 | DD6H-30R01 | 3.000 | 2.252 | 1.750 | 7 | 0.155 | 1.000 | 0.38 | Yes | 0.70 | NA | |||
| 2901672 | DD6H-40R01 | 4.000 | 3.252 | 2.375 | 9 | 0.155 | 1.500 | 0.63 | Yes | 0.40 | NA | |||
| 2904101 | DD6H-50R01 | 5.000 | 4.254 | 2.375 | 11 | 0.155 | 1.500 | 0.63 | Yes | 0.30 | NA | |||
| 2904107 | DD6H-60R01 | 6.000 | 5.253 | 2.375 | 13 | 0.155 | 1.500 | 0.63 | No | 0.30 | NA |
Notes:
- Programing Corner Radius: .155"R
