Series: CD - 3xD Combi Drill (Tip & Indexable)

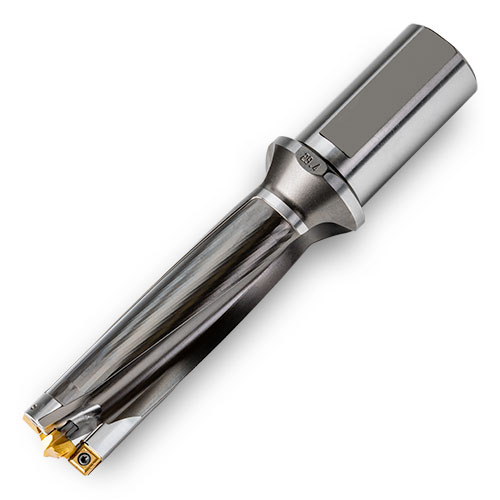

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø1.031-1.516"
- Universal Shank
- Rail Industry Specific Diameters
- Two Effective
- Holds +.003/-.000 on Hole Diameter
- Coolant Through

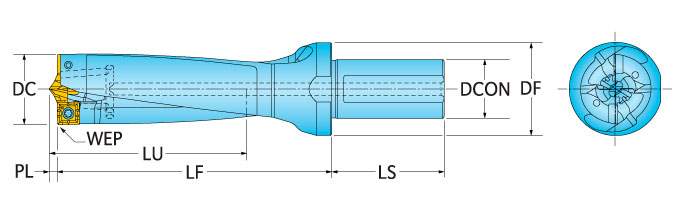

EDP |
Part Number |
DC Cutting Dia. |
PL Point Length |
LU Usable Length |
LF Functional Length |
LS Shank Length |
DCON Shank Dia. |
DF Flange Dia. |
ZEFF Eff. Teeth |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 6269212 | CD2620079N6R03 | 1.031 | 0.153 | 3.11 | 4.440 | 2.36 | 1.25 | 1.57 | 2 | |
| 6269366 | CD2700081N6R03 | 1.063 | 0.161 | 3.19 | 4.550 | 2.36 | 1.25 | 1.57 | 2 | |
| 6269367 | CD2860086N6R03 | 1.125 | 0.165 | 3.39 | 4.791 | 2.36 | 1.25 | 1.57 | 2 | |
| 6269368 | CD2870087N6R03 | 1.130 | 0.165 | 3.43 | 4.830 | 2.36 | 1.25 | 1.57 | 2 | |
| 6269369 | CD2940088N6R03 | 1.156 | 0.153 | 3.46 | 4.854 | 2.36 | 1.25 | 1.57 | 2 | |
| 6269370 | CD3020091N6R03 | 1.188 | 0.161 | 3.58 | 5.007 | 2.36 | 1.25 | 1.57 | 2 | |
| 6269372 | CD3180095N6R03 | 1.250 | 0.165 | 3.74 | 5.204 | 2.36 | 1.25 | 1.57 | 2 | |
| 6269374 | CD3330100N6R03 | 1.312 | 0.153 | 3.94 | 5.563 | 2.36 | 1.25 | 1.97 | 2 | |
| 6269375 | CD3490105N6R03 | 1.375 | 0.161 | 4.13 | 5.795 | 2.36 | 1.25 | 1.97 | 2 | |
| 6269376 | CD3650110N6R03 | 1.437 | 0.173 | 4.33 | 6.066 | 2.36 | 1.25 | 1.97 | 2 | |
| 6269377 | CD3810114N6R03 | 1.500 | 0.169 | 4.49 | 6.244 | 2.36 | 1.25 | 1.97 | 2 | |
| 6269378 | CD3850115N6R03 | 1.516 | 0.169 | 4.53 | 6.283 | 2.36 | 1.25 | 1.97 | 2 |
Notes:
- Do not mount a smaller drill point than the one listed with the tool. Standard Gold Twist tips do not fit in the Gold Twin. Gold Twin use a modified, standard Gold Twist tip, designation TPC-C, and locking key..
