Series: EBSR - High Ramp Brazed PCD End Mill

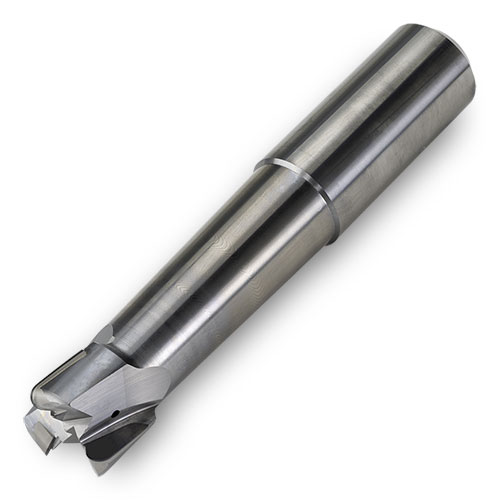

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø.625-1.250" / Ø16-32 mm Cutting Diameters
- Carbide Cylindrical Shanks
- 0.700" / 18 mm Max. DOC

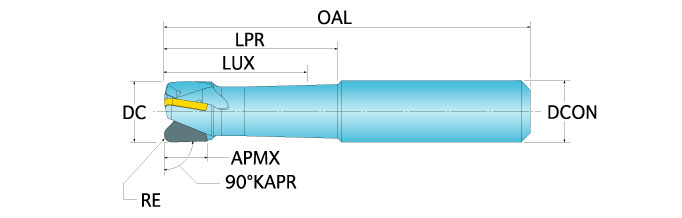

EDP |
Part Number |
DC Cutting Dia. |
RE Corner Radius |
APMX Depth of Cut Max. |
LUX Usable Length Max. |
OAL Overall Length |
ZEFF Eff. Teeth |
RMPX Ramp Angle Max. |
DCON Shank Dia. |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 2773180 | EBSRD16Z03CM16L10R20-PB | 16.00 mm | 2.00 mm | 10.00 mm | 45.0 mm | 95.0 mm | 3 | 15.0 | 16.00 mm | |
| 2773181 | EBSRD20Z03CM20L12R30-PB | 20.00 mm | 3.00 mm | 12.00 mm | 68.0 mm | 120.0 mm | 3 | 13.0 | 20.00 mm | |
| 2773182 | EBSRD25Z03CM25L15R30-PB | 25.00 mm | 3.00 mm | 15.00 mm | 82.0 mm | 140.0 mm | 3 | 11.0 | 25.00 mm | |
| 2773183 | EBSRD32Z03CM32L18R40-PB | 32.00 mm | 4.00 mm | 18.00 mm | 100.0 mm | 162.0 mm | 3 | 8.0 | 32.00 mm | |
| 2776249 | EBSRI10Z03CM25L15R30-PB | 1.000 | 0.118 | 0.591 | 3.23 | 5.51 | 3 | 11.0 | 25.00 mm | |
| 2776250 | EBSRI12Z03CM32L18R40-PB | 1.250 | 0.157 | 0.709 | 3.94 | 6.38 | 3 | 8.0 | 32.00 mm | |
| 2776247 | EBSRI62Z03CM16L10R20-PB | 0.625 | 0.078 | 0.393 | 1.77 | 3.74 | 3 | 15.0 | 16.00 mm | |
| 2776248 | EBSRI75Z03CM20L12R30-PB | 0.750 | 0.118 | 0.472 | 2.68 | 4.72 | 3 | 13.0 | 20.00 mm |
| Metric | Inch | ||||
|---|---|---|---|---|---|
| MATERIAL | Grade | Vc (m/min) | Fz (mm/z) | Vc (SFM) | Fz (in/tooth) |
| Aluminum Casting Alloys (Si < 12%) |
PCD | 300-500 | 0.05 - 0.18 | 950 - 1650 | .002" - .007" |
| Aluminum Casting Alloys (Si > 12%) |
PCD | 300-500 | 0.04 - 0.14 | 950 - 1650 | .0015" - .0055" |
| Copper, Bronze, Brass Alloys |
PCD | 300-500 | 0.03 - 0.08 | 950 - 1650 | .001" - .003" |
| Magnesium Alloys | PCD | 300-500 | 0.06 - 0.16 | 950 - 1650 | .0025" - .006" |
| Graphite | PCD | 300-500 | 0.06 - 0.16 | 950 - 1650 | .0025" - .006" |
Note: Feed and speed recommendations are starting operating parameters. They are only guidelines from which further optimization should take place. Operating parameters are influenced by many machining variables. These variables may cause for reductions in feeds and speed or dramatic increases. Additionally, DOC and WOC may need to be revised to optimize the tools performance.
