Series: S*T*DA - Steel Shank, 2 Sided

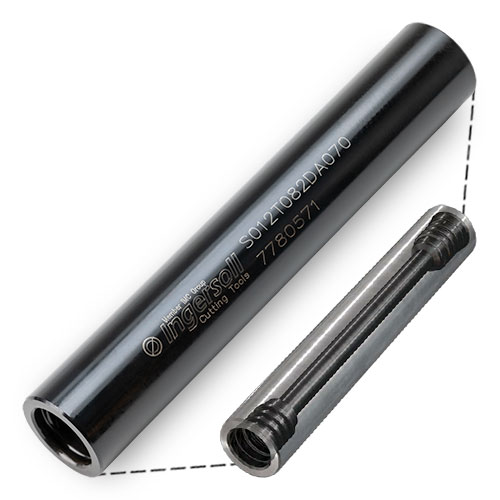

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø8.00 - 20.00 mm
- Cylindrical Shank
- 2 Sided Chip Surfer Connection
- Chamfered Neck Relief
- Due to tolerance, shank diameter will be slightly larger than tip diameter. .010" per side neck modification required for clearance when milling 90° shoulder
EDP |
Part Number |
CCWS Connection Code Workpiece Side |
OAL Overall Length |
BD Body Dia. |
CNSC Coolant Entry Style Code |
CXSC Coolant Exit Style Code |
BMC Body Material Code |
RPMX RPM Max. |
|
|---|---|---|---|---|---|---|---|---|---|
| 3735203 | S008T052DA050 | Chip Surfer T05 | 50.00 mm | 7.60 mm | 1 | 1 | Steel | 60000 | |
| 3735205 | S012T082DA070 | Chip Surfer T08 | 70.00 mm | 11.60 mm | 1 | 1 | Steel | 60000 | |
| 3735206 | S016T102DA080 | Chip Surfer T10 | 80.00 mm | 15.30 mm | 1 | 1 | Steel | 60000 | |
| 3735207 | S020T122DA090 | Chip Surfer T12 | 90.00 mm | 18.30 mm | 1 | 1 | Steel | 60000 |
Notes:
- When assembling, be sure carbide tip is seated firmly on shank with no gap. No lubricant on adaption. Wrenches sold seperately.
- Tightening Torque:
- T05=60 in lb
- T06=90 in lb
- T08=130 in lb
- T10=250 in lb
- T12=250 in lb
- T15=350 in lb
