Series: IPB - FH_SLD (serrated)

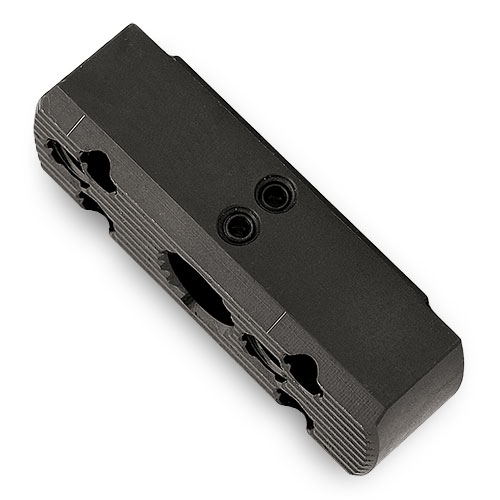

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Use with IPB Boring Heads
EDP |
Part Number |
ISO Number |

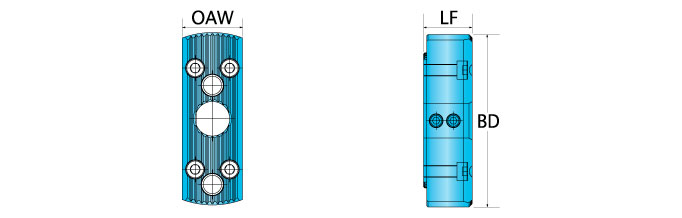

BD Body Dia. |
OAW Overall Width |
DCON Connection Dia. |
LF Functional Length |
CASC Cartridge Size Code |
WT Weight (lb) |
|
|---|---|---|---|---|---|---|---|---|---|
| 2941821 | FH-SLD-24-100 | FH-SLD-24-100 | 3.394 | 0.940 | - | 0.570 | 50 | 0.440 | |
| 2941820 | PS31.24 | FH-SLD-24-75 | 2.950 | 0.940 | - | 0.570 | 50 | 0.418 | |
| 2941823 | FH-SLD-28-108 | FH-SLD-28-108 | 4.250 | 1.100 | - | 0.890 | NA | 1.100 | |
| 2941824 | PS33.28 | FH-SLD-28-148 | 5.830 | 1.100 | - | 0.890 | NA | 1.320 | |
| 2941822 | PS31.28 | FH-SLD-28-80 | 3.150 | 1.100 | 16.000 | 0.890 | 50 | 0.660 |
Notes:
- **For stock D'Andrea items. Refer to series here.
