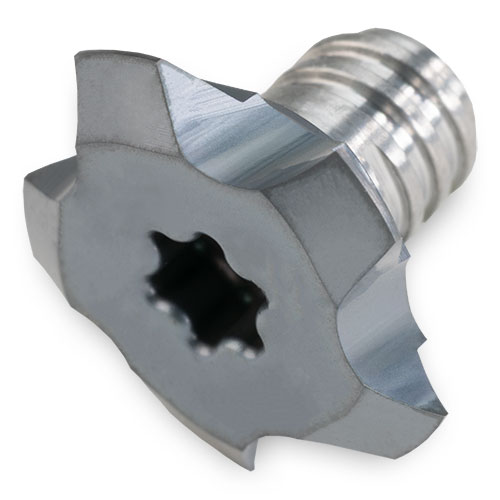

Series: 17Y 18Y - 60° Thread Mill Tip
Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- 60° Partial Profile
- Chip Surfer Connection
- 5 & 6 Flute
- M14 Smallest Possible Thread
- Utilizes Key Drive for Indexing
EDP |
Part Number |
DC Cutting Dia. |
TPN Thread Pitch Min. |
TPX Thread Pitch Max. |
TPIN Threads Per Inch Min. |
TPIX Threads Per Inch Max. |
PNA Profile Included Angle |
FW Flat Width |
PDX Profile Distance Ex |
CDX Cutting Depth Max. |
LF Functional Length |
TDZ Thread Dia. Size |
ZEFF Eff. Teeth |
CCMS Connection Code Machine Side |
DHUB Hub Dia. |
CSP Coolant |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3711554 | 17Y15920T6RP600 IN2005 | 0.628 | 2.0 mm | 3.0 mm | 8 | 13 | 60 | 0.22 mm | 1.41 mm | 2.38 mm | 2.85 mm | M20 | 5 | Chip Surfer T06 | 9.25 mm | No |
Notes:
- When assembling, be sure tip is seated firmly on shank with no gap. No lubricant on adaption. Wrenches sold seperately.
