Series: IPB - AFH (Metric) Analog Finish Head (dovetail)

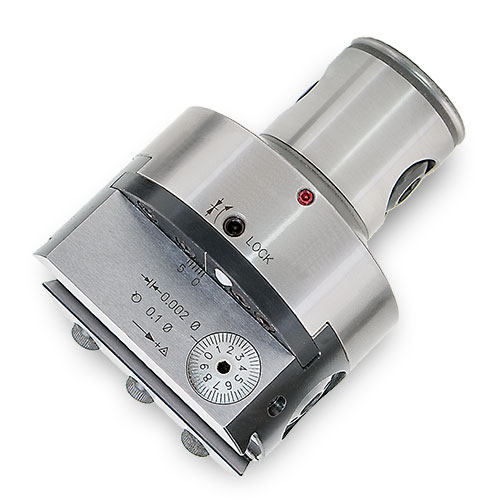

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø18.0-84.0mm
- 2µm adjustability
- IPB compatible
- Metric
EDP |
ANSI Number |
ISO Number |

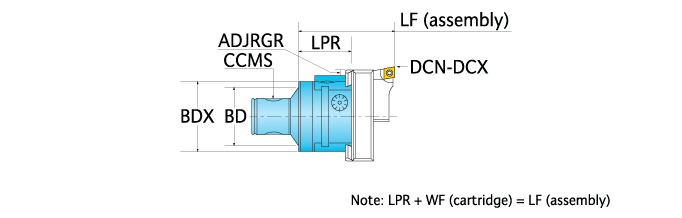

DCN Cutting Dia. Min. |
DCX Cutting Dia. Max. |
CCMS Connection Code Machine Side |
BD Body Dia. |
BDX Body Dia. Max. |
LPR Protruding Length |
ADJRGR Adjustment Range Radial |
CASC Cartridge Size Code |
WT Weight (lb) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2941778 | AFH-IPB50-63 | AFH-IPB50-63 | 77.0 mm | 125.0 mm | IPB-50 | 50.00 mm | 63.00 mm | 49.0 mm | 5.0 mm | 25, 32, 50, 51 | 1.700 | |
| 2941779 | AFH-IPB50-80 | AFH-IPB50-80 | 95.0 mm | 160.0 mm | IPB-50 | 50.00 mm | 80.00 mm | 58.0 mm | 5.0 mm | 25, 32, 50, 51 | 2.600 | |
| 2941780 | AFH-IPB63-63 | AFH-IPB63-63 | 77.0 mm | 125.0 mm | IPB-63 | 63.00 mm | 63.00 mm | 49.0 mm | 5.0 mm | 25, 32, 50, 51 | 2.000 | |
| 2941782 | AFH-IPB80-125 | AFH-IPB80-125 | 135.0 mm | 500.0 mm | IPB-125 | 80.00 mm | 125.00 mm | 63.0 mm | 5.0 mm | 25, 32, 40, 50, 51 | 7.200 | |
| 2941781 | AFH-IPB80-80 | AFH-IPB80-80 | 95.0 mm | 160.0 mm | IPB-80 | 80.00 mm | 80.00 mm | 58.0 mm | 5.0 mm | 25, 32, 50, 51 | 3.100 |
Notes:
- **For stock D'Andrea items. Refer to series here.
