Series: IPB - 8X - Carbide Boring Bar

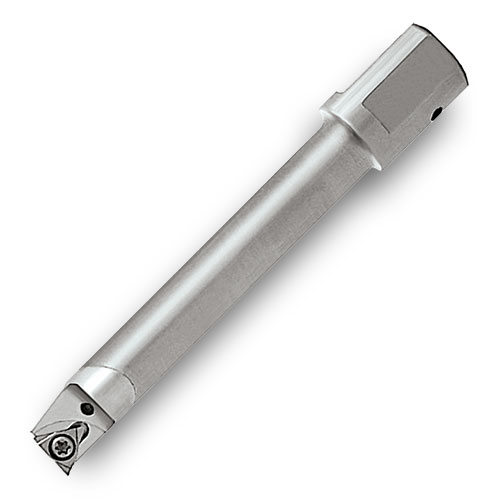

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø.236-.708" (Ø6-18 mm)
- Flatted Shank (Metric)
- IPB Compatible
EDP |
ANSI Number |
ISO Number |
DCN Cutting Dia. Min. |
DCX Cutting Dia. Max. |
LF Funtional Length |
LDRED Reduced Body Dia. Length |
LS Shank Length |
DCON Connection Code Machine Side |
WT Weight (lb) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 2941771 | IPB-8X-E6-8-W02 | IPB-8X-E6-8-W02 | 0.236 (6.0 mm) | 0.315 (8.0 mm) | 2.640 (67.1 mm) | 1.770 (45.0 mm) | 0.870 | Shank 16 mm | 0.14 | |
| 2941772 | IPB-8X-E8-10-W02 | IPB-8X-E8-10-W02 | 0.315 (8.0 mm) | 0.393 (10.0 mm) | 3.230 (82.0 mm) | 2.360 (59.9 mm) | 0.870 | Shank 16 mm | 0.18 | |
| 2941773 | IPB-8X-E10-12-T09 | IPB-8X-E10-12-T09 | 0.393 (10.0 mm) | 0.472 (12.0 mm) | 3.819 (97.0 mm) | 2.950 (74.9 mm) | 0.870 | Shank 16 mm | 0.22 | |
| 2941774 | IPB-8X-E12-14-T09 | IPB-8X-E12-14-T09 | 0.472 (12.0 mm) | 0.551 (14.0 mm) | 4.409 (112.0 mm) | 3.540 (89.9 mm) | 0.870 | Shank 16 mm | 0.44 | |
| 2941775 | IPB-8X-E14-16-T09 | IPB-8X-E14-16-T09 | 0.551 (14.0 mm) | 0.630 (16.0 mm) | 5.000 (127.0 mm) | 4.133 (105.0 mm) | 0.870 | Shank 16 mm | 0.44 | |
| 2941776 | IPB-8X-E16-18-T09 | IPB-8X-E16-18-T09 | 0.630 (16.0 mm) | 0.708 (18.0 mm) | 5.590 (142.0 mm) | 4.724 (120.0 mm) | 0.870 | Shank 16 mm | 0.66 |
Notes:
- **For stock D'Andrea items. Refer to series here.
