Series: FH_SLD for AFH/AFHE (dovetail)

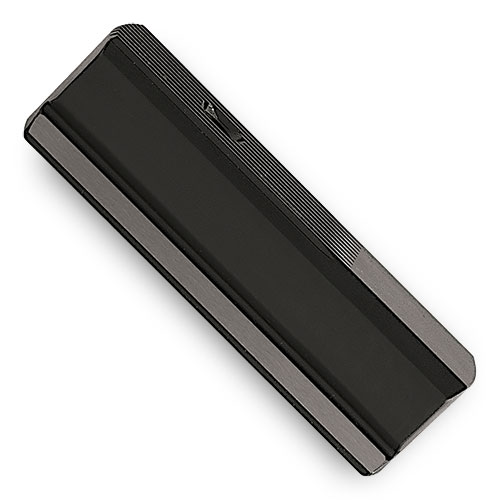

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Use with AFH/AFHE Dovetail Finishing Heads
- IPB compatible

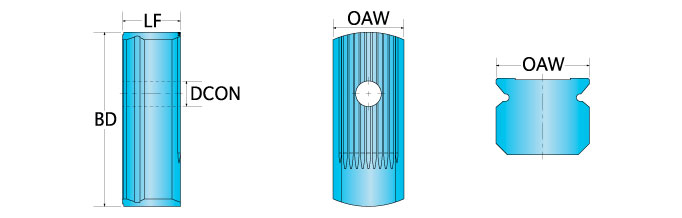

EDP |
Part Number |
ISO Number |
DCN Cutting Dia. Min. |
DCX Cutting Dia. Max. |
BD Body Dia. |
OAW Overall Width |
LF Functional Length |
CASC Cartridge Size Code |
WT Weight (lb) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 2941791 | FH-SLD-30-135 | FH-SLD-30-135 | 5.510 | 6.300 | 5.314 | 1.200 | 0.984 | 50, 51 | 1.543 | |
| 2941789 | FH-SLD-30-75 | FH-SLD-30-75 | 3.030 | 3.940 | 2.952 | 1.200 | 0.984 | 50, 51 | 0.881 | |
| 2941790 | FH-SLD-30-93 | FH-SLD-30-93 | 3.700 | 4.920 | 3.661 | 1.200 | 0.984 | 50, 51 | 1.102 | |
| 2941792 | FH-SLD-40-133 | FH-SLD-40-133 | 5.310 | 8.270 | 5.236 | 1.574 | 1.574 | 50, 51 | 3.306 | |
| 2941793 | FH-SLD-40-200 | FH-SLD-40-200 | 8.070 | 12.200 | 7.874 | 1.574 | 1.574 | 50, 51 | 5.291 | |
| 2941794 | FH-SLD-40-300 | FH-SLD-40-300 | 12.010 | 16.140 | 11.811 | 1.574 | 1.574 | 50, 51 | 7.716 | |
| 2941795 | FH-SLD-40-400 | FH-SLD-40-400 | 15.940 | 19.690 | 15.748 | 1.574 | 1.574 | 50, 51 | 10.141 |
Notes:
- **For stock D'Andrea items. Refer to series here.
