Series: IPB - FH_SLV

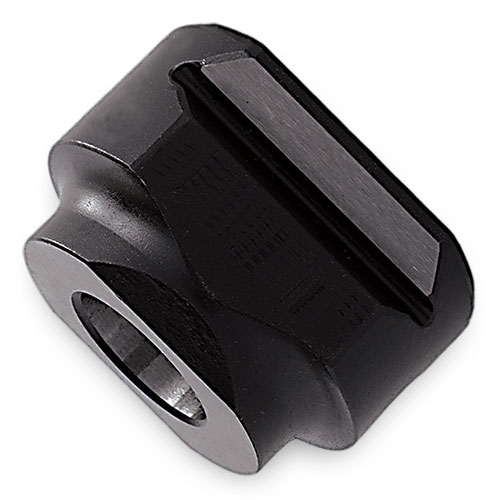

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Dovetail Boring Bar Holder for AFH
- IPB compatible
- For use with AFH/AFHE-IPB63 & AFH/AFHE-IPB80
- Accommodates16mm shank boring bar

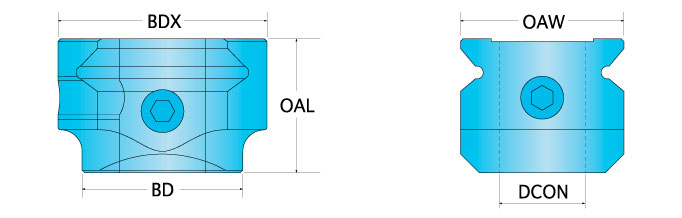

EDP |
Part Number |
ISO Number |
BD Body Dia. |
BDX Body Dia. Max. |
OAL Overall Length |
OAW Overall Width |
DCON Connection Dia. |
WT Weight (lb) |
|
|---|---|---|---|---|---|---|---|---|---|
| 2941788 | FH-SLV-30-16 | FH-SLV-30-16 | 1.180 | 1.540 | 0.980 | 1.200 | 16.00 mm | 0.440 |
Notes:
- **For stock D'Andrea items. Refer to series here.
