Series: IPB - DFH-Digital Finish Boring Head

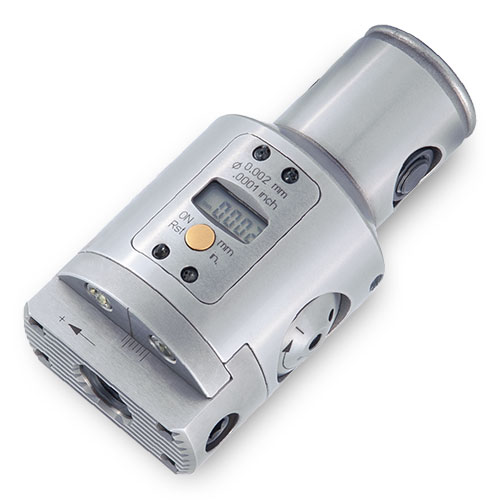

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø.098-4.33"
- IP69K protection (dust/coolant)
- IPB compatible
EDP |
ANSI Number |
ISO Number |

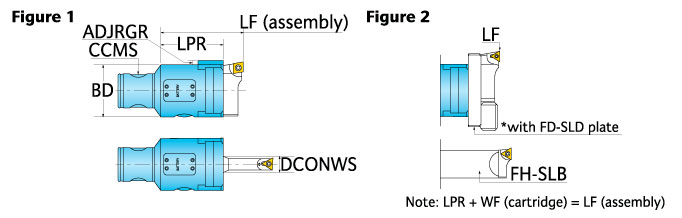

DCN Cutting Dia. Min. |
DCX Cutting Dia. Max. |
CCMS Connection Code Machine Side |
BD Body Dia. |
LPR Protruding Length |
ADJRGR Adjustment Range Radial |
CASC Cartridge Size Code |
WT Weight (lb) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2941777 | DFH-IPB50-69K | DFH-IPB50-69K | 0.098 | 5.512 | IPB-50 | 50.00 mm | 2.36 | 0.157 | 25, 32, 50, 51 | 2.425 |
Notes:
- **For stock D'Andrea items. Refer to series here.
