Series: IPB -FD (inch)

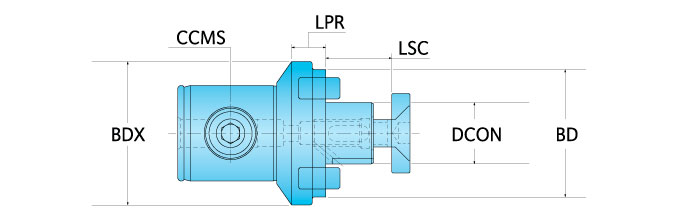

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- FD FaceMill Driver
- IPB compatible
EDP |
ANSI Number |
ISO Number |
CCMS Connection Code Machine Side |
DCON Connection Dia. |
BD Body Dia. |
BDX Body Dia. Max. |
LSC Clamping Length |
LPR Protruding Length |
WT Weight (lb) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 2941716 | IPB50-FD-3/4 | IPB50-FD-3/4 | IPB-50 | 0.750 | 1.570 | 1.968 | 0.680 | 0.590 | 1.10 |
EDP |
ANSI Number |
ISO Number |
CCMS Connection Code Machine Side |
DCON Connection Dia. |
BD Body Dia. |
BDX Body Dia. Max. |
LSC Clamping Length |
LPR Protruding Length |
WT Weight (lb) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 2941716 | IPB50-FD-3/4 | IPB50-FD-3/4 | IPB-50 | 0.750 | 1.570 | 1.968 | 0.680 | 0.590 | 1.10 | |
| 2941717 | PF50-1 | IPB50-FD-1 | IPB-50 | 1.000 | 1.960 | 1.968 | 0.680 | 0.590 | 1.32 | |
| 2941718 | PF63-1 | IPB63-FD-1 | IPB-63 | 1.000 | 2.360 | 2.480 | 0.680 | 0.590 | 2.20 | |
| 2941719 | IPB63-FD-1-1/4 | IPB63-FD-1-1/4 | IPB-63 | 1.250 | 2.750 | 2.480 | 0.680 | 0.750 | 2.87 | |
| 2941720 | PF80-11/2 | IPB80-FD-1-1/2 | IPB-80 | 1.500 | 3.460 | 3.150 | 0.940 | 0.940 | 4.85 | |
| 2941721 | IPB80-FD-2 | IPB80-FD-2 | IPB-80 | 2.000 | 2.850 | 3.150 | 0.940 | 1.060 | 6.61 |
