Series: IPB - ER Collet
Representative image shown ⓘ

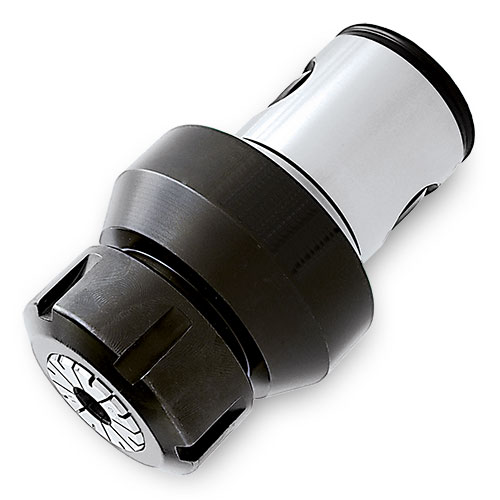

The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- ER collet
- IPB compatible
EDP |
ANSI Number |
ISO Number |

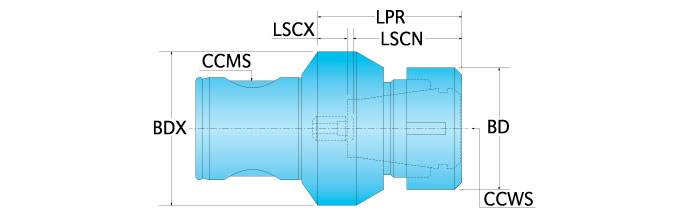

CCMS Connection Code Machine Side |
BDX Body Dia. Max. |
LPR Protruding Length |
LSCX Clamping Length Max. |
LSCN Clamping Length Min. |
CCWS Connection Code Workpiece Side |
WT Weight (lb) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 2941696 | ER16.ER11M | ER16.ER11M | IPB-16 | 16.000 | 0.98 (25 mm) | 0.100 | 0.079 | ER11 | 0.07 | |
| 2941697 | ER20.ER16M | ER20.ER16M | IPB-20 | 20.00 mm | 1.26 (32 mm) | 0.040 | 0.079 | ER16 | 0.13 | |
| 2941698 | ER32.ER25M | ER32.ER25M | IPB-32 | 32.00 mm | 1.65 (42 mm) | 0.060 | 0.079 | ER25 | 0.55 | |
| 2941699 | ER40.ER25 | ER40.ER25 | IPB-40 | 40.00 mm | 1.77 (45 mm) | 0.200 | 0.079 | ER25 | 0.88 | |
| 2941700 | ER50.ER25 | ER50.ER25 | IPB-50 | 50.00 mm | 1.89 (48 mm) | 0.280 | 0.079 | ER25 | 1.54 | |
| 2941701 | ER50.ER32 | ER50.ER32 | IPB-50 | 50.00 mm | 2.17 (55 mm) | 0.310 | 0.079 | ER32 | 2.20 | |
| 2941702 | ER63.ER32 | ER63.ER32 | IPB-63 | 63.00 mm | 2.32 (59 mm) | 0.470 | 0.079 | ER32 | 2.87 |
