Series: IPB - RT-Reducer

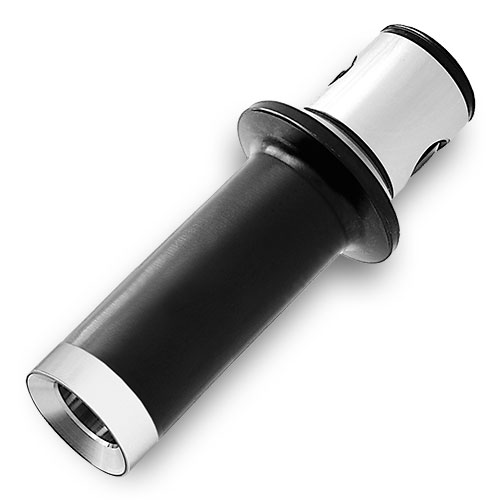

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- IPB reducer
- IPB compatible

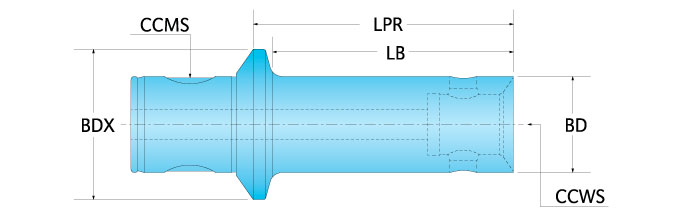

EDP |
ANSI Number |
ISO Number |
CCMS Connection Code Machine Side |
BD Body Dia. |
BDX Body Dia. Max. |
LPR Protruding Length |
LB Body Length |
CCWS Connection Code Workpiece Side |
WT Weight (lb) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 2941637 | IPB20-RT16-20 | IPB20-RT16-20 | IPB-20 | 20.000 mm | 20.000 mm | 0.78 | 0.620 | IPB-16 | 0.110 | |
| 2941638 | IPB25-RT16-20 | IPB25-RT16-20 | IPB-25 | 16.000 mm | 25.000 mm | 0.78 | 0.590 | IPB-16 | 0.154 | |
| 2941640 | IPB32-RT16-24 | IPB32-RT16-24 | IPB-32 | 16.000 mm | 32.000 mm | 0.94 | 0.700 | IPB-16 | 0.330 | |
| 2941643 | IPB40-RT16-24 | IPB40-RT16-24 | IPB-40 | 16.000 mm | 40.000 mm | 0.94 | 0.660 | IPB-16 | 0.396 | |
| 2941647 | IPB50-RT16-24 | IPB50-RT16-24 | IPB-50 | 16.000 mm | 50.000 mm | 0.94 | 0.590 | IPB-16 | 0.881 | |
| 2941639 | IPB25-RT20-25 | IPB25-RT20-25 | IPB-25 | 20.000 mm | 25.000 mm | 0.98 | 0.780 | IPB-20 | 0.176 | |
| 2941641 | IPB32-RT20-25 | IPB32-RT20-25 | IPB-32 | 20.000 mm | 32.000 mm | 0.98 | 0.780 | IPB-20 | 0.330 | |
| 2941644 | IPB40-RT20-26 | IPB40-RT20-26 | IPB-40 | 20.000 mm | 40.000 mm | 1.02 | 0.780 | IPB-20 | 0.440 | |
| 2941650 | IPB50-RT20-26 | IPB50-RT20-26 | IPB-50 | 20.000 mm | 50.000 mm | 1.02 | 0.700 | IPB-20 | 0.881 | |
| 2941642 | IPB32-RT25-28 | IPB32-RT25-28 | IPB-32 | 25.000 mm | 32.000 mm | 1.10 | 0.900 | IPB-25 | 0.330 | |
| 2941645 | IPB40-RT25-28 | IPB40-RT25-28 | IPB-40 | 25.000 mm | 40.000 mm | 1.10 | 0.860 | IPB-25 | 0.551 | |
| 2941654 | IPB50-RT25-28 | IPB50-RT25-28 | IPB-50 | 25.000 mm | 50.000 mm | 1.10 | 0.820 | IPB-25 | 0.881 | |
| 2941646 | IPB40-RT32-32 | IPB40-RT32-32 | IPB-40 | 32.000 mm | 40.000 mm | 1.26 | 1.060 | IPB-32 | 0.651 | |
| 2941657 | IPB50-RT32-32 | IPB50-RT32-32 | IPB-50 | 32.000 mm | 50.000 mm | 1.26 | 0.980 | IPB-32 | 0.992 | |
| 2941659 | IPB50-RT40-36 | IPB50-RT40-36 | IPB-50 | 40.000 mm | 50.000 mm | 1.41 | 1.180 | IPB-40 | 1.102 | |
| 2941661 | IPB63-RT50-40 | IPB63-RT50-40 | IPB-63 | 50.000 mm | 63.000 mm | 1.57 | 1.330 | IPB-50 | 1.984 | |
| 2941662 | IPB80-RT50-45 | IPB80-RT50-45 | IPB-80 | 50.000 mm | 80.000 mm | 1.77 | 1.410 | IPB-50 | 2.666 | |
| 2941663 | IPB80-RT63-60 | IPB80-RT63-60 | IPB-80 | 63.000 mm | 80.000 mm | 2.36 | 2.040 | IPB-63 | 3.747 |
Notes:
- **For stock D'Andrea items. Refer to series here.
