Series: IPB - SE-Carbide Shank (metric)

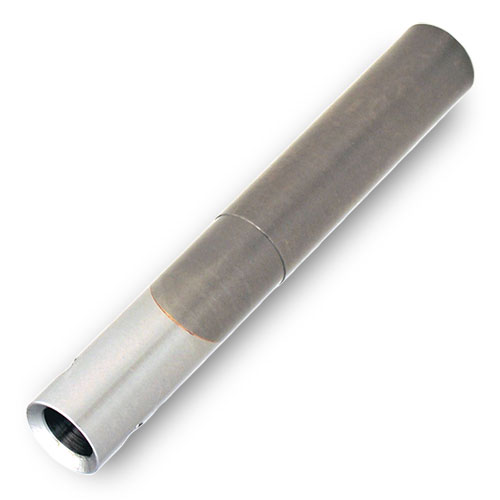

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Carbide Shank (Metric)
- IPB compatible
EDP |
ANSI Number |
ISO Number |

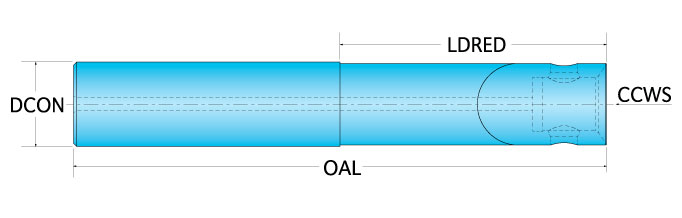

DCON Shank Dia. |
OAL Overall Length |
LDRED Reduced Body Dia. Length |
CCWS Connection Code Workpiece Side |
WT Weight (lb) |
|
|---|---|---|---|---|---|---|---|---|
| 2941593 | SE-16-IPB16.110 | SE-16-IPB16.110 | 16.00 mm | 110.0 mm | 50.0 mm | IPB-16 | 0.660 | |
| 2941594 | SE-16-IPB16.140 | SE-16-IPB16.140 | 16.00 mm | 140.0 mm | 63.0 mm | IPB-16 | 0.880 | |
| 2941595 | SE-16-IPB16.170 | SE-16-IPB16.170 | 16.00 mm | 170.0 mm | 80.0 mm | IPB-16 | 1.100 | |
| 2941596 | SE-20-IPB20.135 | SE-20-IPB20.135 | 20.00 mm | 135.0 mm | 63.0 mm | IPB-20 | 1.320 | |
| 2941597 | SE-20-IPB20.170 | SE-20-IPB20.170 | 20.00 mm | 170.0 mm | 80.0 mm | IPB-20 | 1.650 | |
| 2941598 | SE-20-IPB20.210 | SE-20-IPB20.210 | 20.00 mm | 210.0 mm | 100.0 mm | IPB-20 | 1.980 | |
| 2941599 | SE-25-IPB25.160 | SE-25-IPB25.160 | 25.00 mm | 160.0 mm | 80.0 mm | IPB-25 | 2.200 | |
| 2941600 | SE-25-IPB25.205 | SE-25-IPB25.205 | 25.00 mm | 205.0 mm | 100.0 mm | IPB-25 | 2.870 | |
| 2941601 | SE-25-IPB25.255 | SE-25-IPB25.255 | 25.00 mm | 255.0 mm | 125.0 mm | IPB-25 | 3.530 | |
| 2941602 | SE-32-IPB32.195 | SE-32-IPB32.195 | 32.00 mm | 195.0 mm | 100.0 mm | IPB-32 | 4.630 | |
| 2941603 | SE-32-IPB32.250 | SE-32-IPB32.250 | 32.00 mm | 250.0 mm | 125.0 mm | IPB-32 | 6.170 | |
| 2941604 | SE-32-IPB32.315 | SE-32-IPB32.315 | 32.00 mm | 315.0 mm | 160.0 mm | IPB-32 | 7.720 |
Notes:
- **For stock D'Andrea items. Refer to series here.
