Series: IPB - SS (Steel)

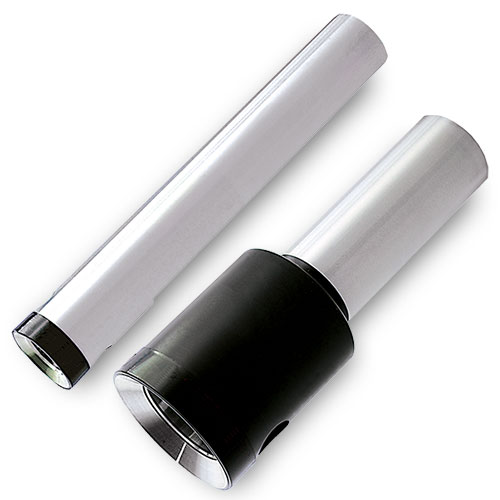

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Cylindrical or Flatted Shank
- IPB compatible
EDP |
ANSI Number |
ISO Number |
DCON Shank Dia. |
BD Body Dia. |
OAL Overall Length |
OHX Overhang Max. |
CCWS Connection Code Workpiece Side |
WT Weight (lb) |

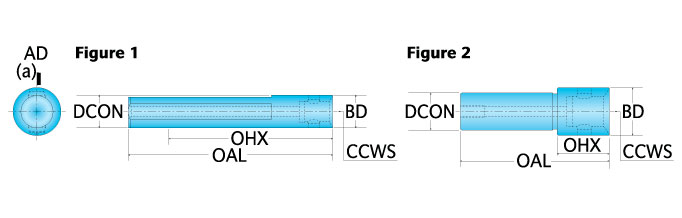

FIGURE Figure |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 2941592 | SS-1.25-IPB50.60 | SS-1.25-IPB50.60 | 1.250 | 1.968 | 5.512 | 2.36 | IPB-50 | 2.200 | 2 | |
| 2941587 | SS-16-IPB16.100 | SS-16-IPB16.100 | 16.00 mm | 16.00 mm | 100.0 mm | - | IPB-16 | 0.330 | 1 | |
| 2941591 | SS-1-IPB32.35 | SS-1-IPB32.35 | 1.000 | 1.260 | 3.937 | 1.38 | IPB-32 | 1.540 | 2 | |
| 2941588 | SS-20-IPB20.125 | SS-20-IPB20.125 | 20.00 mm | 20.00 mm | 125.0 mm | - | IPB-20 | 0.660 | 1 | |
| 2941589 | SS-25-IPB32.35 | SS-25-IPB32.35 | 25.00 mm | 32.00 mm | 100.0 mm | 35.00 mm | IPB-32 | 1.540 | 2 | |
| 2941590 | SS-32-IPB50.60 | SS-32-IPB50.60 | 32.00 mm | 50.00 mm | 140.0 mm | 60.00 mm | IPB-50 | 2.200 | 2 |
Notes:
- **For stock D'Andrea items. Refer to series here.
