Series: IPB - MAS403-BT

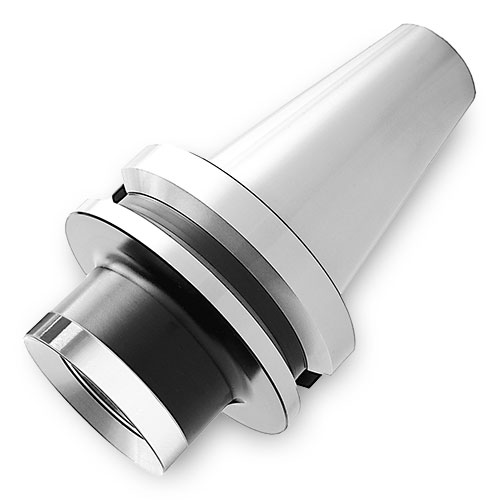

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- MAS403-BT arbor
- IPB compatible
EDP |
ANSI Number |
ISO Number |
CCMS Connection Code Machine Side |
BD Body Dia. |
LF Functional Length |
LB Body Length |
CCWS Connection Code Workpiece Side |
WT Weight (lb) |

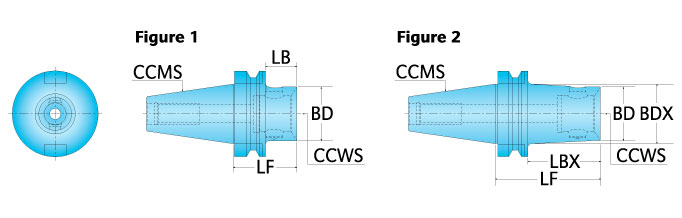

FIGURE Figure |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 2941552 | MAS403-BT30-IPB50.60 | MAS403-BT30-IPB50.60 | BT30 | 50.00 mm | 2.36 | 1.420 | IPB-50 | 1.540 | 1 | |
| 2941555 | MAS403-BT40-IPB50.48 | MAS403-BT40-IPB50.48 | BT40 | 50.00 mm | 1.89 | 0.830 | IPB-50 | 1.980 | 1 | |
| 2941557 | MAS403-BT40-IPB63.66 | MAS403-BT40-IPB63.66 | BT40 | 63.00 mm | 2.60 | - | IPB-63 | 2.640 | 1 | |
| 2941558 | MAS403-BT45-IPB50.62 | MAS403-BT45-IPB50.62 | BT45 | 50.00 mm | 2.44 | 1.140 | IPB-50 | 3.740 | 1 | |
| 2941559 | MAS403-BT50-IPB50.66 | MAS403-BT50-IPB50.66 | BT50 | 50.00 mm | 2.60 | 1.100 | IPB-50 | 7.700 | 1 | |
| 2941561 | MAS403-BT50-IPB63.50 | MAS403-BT50-IPB63.50 | BT50 | 63.00 mm | 1.97 | 0.470 | IPB-63 | 7.500 | 1 | |
| 2941563 | MAS403-BT50-IPB80.75 | MAS403-BT50-IPB80.75 | BT50 | 80.00 mm | 2.95 | 1.460 | IPB-80 | 8.810 | 1 |
Notes:
- **For stock D'Andrea items. Refer to series here.
