Series: IPB - ANSI/CAT

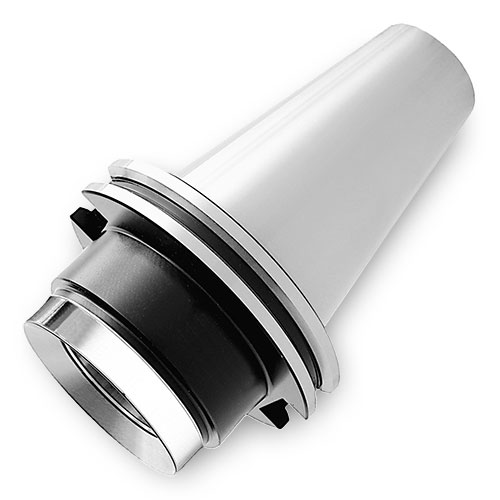

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- ANSI CAT Spindle Adapter (metric pull stud)
- IPB compatible
EDP |
ANSI Number |
ISO Number |
CCMS Connection Code Machine Side |
CRKS Connection Retention Knob Thread Size |
BD Body Dia. |
LF Functional Length |
LB Body Length |
CCWS Connection Code Workpiece Side |
WT Weight (lb) |

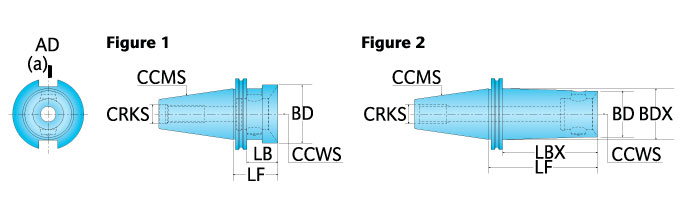

FIGURE Figure |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2941532 | ANSI/CAT40-IPB50.66 | ANSI/CAT40-IPB50.66 | CAT40 | M16 | 50.00 mm | 2.59 | 1.850 | IPB-50 | 2.420 | 1 | |
| 2941533 | ANSI/CAT40-IPB63.100 | ANSI/CAT40-IPB63.100 | CAT40 | M16 | 63.00 mm | 3.94 | - | IPB-63 | 4.180 | 1 | |
| 2941535 | ANSI/CAT50-IPB50.48 | ANSI/CAT50-IPB50.48 | CAT50 | M24 | 50.00 mm | 1.89 | 1.140 | IPB-50 | 6.390 | 1 | |
| 2941536 | ANSI/CAT50-IPB80.62 | ANSI/CAT50-IPB80.62 | CAT50 | M24 | 80.00 mm | 2.44 | 1.692 | IPB-80 | 7.500 | 1 |
Notes:
- **For stock D'Andrea items. Refer to series here.
