Series: IPB - PSC (ISO26623-1)

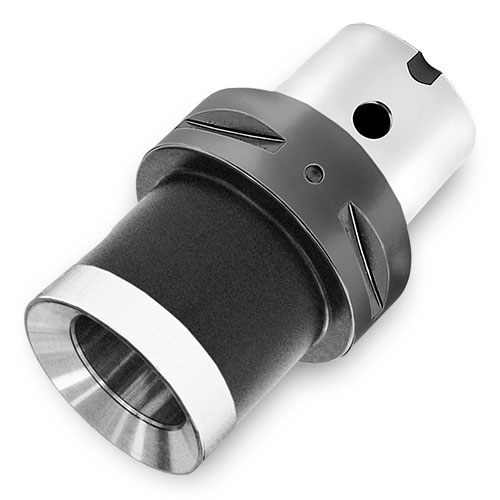

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- ISO26623-1 / PSC
- IPB Quick Change Arbor
- IPB compatible
EDP |
ANSI Number |
ISO Number |
CCMS Connection Code Machine Side |
BD Body Dia. |
BDX Body Dia. Max. |
LF Functional Length |
LB Body Length |
LBX Body Length Max. |
CCWS Connection Code Workpiece Side |
WT Weight (lb) |

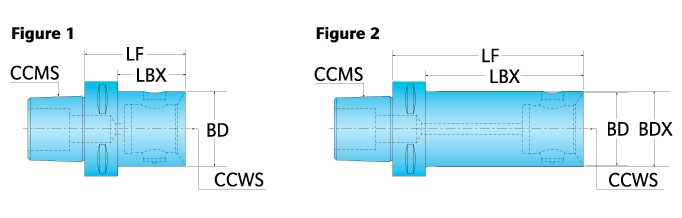

FIGURE Figure |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2941519 | C4-IPB32.42 | C4-IPB32.42 | C4 | 32.000 | - | 1.65 | 0.870 | - | IPB-32 | 0.660 | 1 | |
| 2941520 | C5-IPB50.55 | C5-IPB50.55 | C5 | 50.00 mm | - | 2.17 | - | - | IPB-50 | 1.760 | 1 | |
| 2941522 | C6-IPB40.50 | C6-IPB40.50 | C6 | 40.00 mm | - | 1.97 | 1.102 | - | IPB-40 | 1.980 | 1 | |
| 2941521 | C6-IPB40.120 | C6-IPB40.120 | C6 | 40.00 mm | 44.00 mm | 4.72 | - | 3.858 | IPB-40 | 3.310 | 2 | |
| 2941524 | C6-IPB50.55 | C6-IPB50.55 | C6 | 50.00 mm | - | 2.17 | 1.299 | - | IPB-50 | 2.430 | 1 | |
| 2941525 | C6-IPB50.67 | C6-IPB50.67 | C6 | 50.00 mm | - | 2.64 | 1.772 | - | IPB-50 | 2.430 | 1 | |
| 2941523 | C6-IPB50.120 | C6-IPB50.120 | C6 | 50.00 mm | 54.00 mm | 4.72 | - | 3.850 | IPB-50 | 1.900 | 2 | |
| 2941526 | C6-IPB63.77 | C6-IPB63.77 | C6 | 63.00 mm | - | 3.03 | - | - | IPB-63 | 4.190 | 1 | |
| 2941527 | C8-IPB50.60 | C8-IPB50.60 | C8 | 50.00 mm | - | 2.36 | 1.181 | - | IPB-50 | 4.410 | 1 | |
| 2941528 | C8-IPB50.120 | C8-IPB50.120 | C8 | 50.00 mm | 54.00 mm | 4.72 | 3.540 | - | IPB-50 | 6.170 | 2 | |
| 2941529 | C8-IPB63.70 | C8-IPB63.70 | C8 | 63.00 mm | - | 2.76 | 1.575 | - | IPB-63 | 5.070 | 1 | |
| 2941530 | C8-IPB63.150 | C8-IPB63.150 | C8 | 63.00 mm | 67.00 mm | 5.91 | 4.720 | - | IPB-63 | 8.820 | 2 | |
| 2941531 | C8-IPB80.75 | C8-IPB80.75 | C8 | 80.00 mm | - | 2.95 | - | - | IPB-80 | 5.730 | 1 |
Notes:
- **For stock D'Andrea items. Refer to series here.
