Series: IPB - HSK-A (DIN69893)

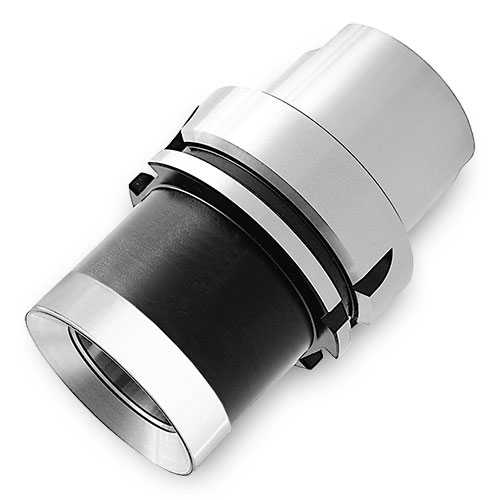

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- HSK-A DIN Spindle Adapter
- IPB compatible
EDP |
ANSI Number |
ISO Number |
CCMS Connection Code Machine Side |
BD Body Dia. |
BDX Body Dia. Max. |
LF Functional Length |
LB Body Length |
LBX Body Length Max. |
CCWS Connection Code Workpiece Side |
WT Weight (lb) |

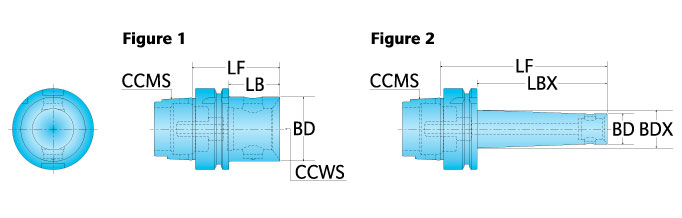

FIGURE Figure |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2941905 | HSK-A100-IPB50.72 | HSK-A100-IPB50.72 | HSK A100 | 50.00 mm | - | 2.83 | 1.690 | - | IPB-50 | 5.290 | - | |
| 2941906 | HSK-A100-IPB50.120 | HSK-A100-IPB50.120 | HSK A100 | 50.00 mm | 60.00 mm | 4.72 | - | 3.580 | IPB-50 | 7.050 | 2 | |
| 2941907 | HSK-A100-IPB63.82 | HSK-A100-IPB63.82 | HSK A100 | 63.00 mm | - | 3.23 | 2.086 | - | IPB-63 | 5.950 | 1 | |
| 2941908 | HSK-A100-IPB63.150 | HSK-A100-IPB63.150 | HSK A100 | 63.00 mm | 70.00 mm | 5.91 | - | 4.760 | IPB-63 | 9.920 | 2 | |
| 2941909 | HSK-A100-IPB80.88 | HSK-A100-IPB80.88 | HSK A100 | 80.00 mm | - | 3.46 | 2.320 | - | IPB-80 | 6.600 | 1 | |
| 2941910 | HSK-A100-IPB80.180 | HSK-A100-IPB80.180 | HSK A100 | 80.00 mm | 80.00 mm | 7.09 | - | 5.940 | MHD 80 | 14.330 | 2 | |
| 2941896 | HSK-A50-IPB50.66 | HSK-A50-IPB50.66 | HSK A50 | 50.00 mm | - | 2.60 | 1.574 | - | IPB-50 | 1.320 | 1 | |
| 2941897 | HSK-A63-IPB40.60 | HSK-A63-IPB40.60 | HSK A63 | 40.00 mm | - | 2.36 | 1.338 | - | IPB-40 | 1.540 | 1 | |
| 2941898 | HSK-A63-IPB40.120 | HSK-A63-IPB40.120 | HSK A63 | 40.00 mm | 46.00 mm | 4.72 | - | 3.700 | IPB-40 | 1.540 | 2 | |
| 2941899 | HSK-A63-IPB50.66 | HSK-A63-IPB50.66 | HSK A63 | 50.00 mm | - | 2.60 | 1.574 | - | IPB-50 | 1.940 | 1 | |
| 2941900 | HSK-A63-IPB50.120 | HSK-A63-IPB50.120 | HSK A63 | 50.00 mm | - | 4.72 | 3.700 | - | IPB-50 | 1.940 | 1 | |
| 2941901 | HSK-A63-IPB63.75 | HSK-A63-IPB63.75 | HSK A63 | 63.00 mm | - | 2.95 | - | - | IPB-63 | 2.420 | 1 | |
| 2941902 | HSK-A80-IPB50.70 | HSK-A80-IPB50.70 | HSK A80 | 50.00 mm | - | 2.76 | 1.732 | - | IPB-50 | 3.300 | 1 | |
| 2941903 | HSK-A80-IPB63.80 | HSK-A80-IPB63.80 | HSK A80 | 63.00 mm | - | 3.15 | 2.130 | - | IPB-63 | 3.960 | 1 | |
| 2941904 | HSK-A80-IPB80.86 | HSK-A80-IPB80.86 | HSK A80 | 80.00 mm | - | 3.39 | - | - | IPB-80 | 4.620 | 1 |
Notes:
- **For stock D'Andrea items. Refer to series here.
