Series: IPB - DIN69871
Representative image shown ⓘ

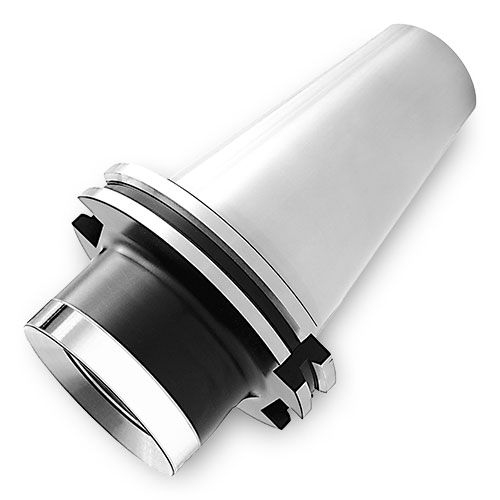

The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- DIN69871
- IPB Compatible
EDP |
ANSI Number |
ISO Number |
CCMS Connection Code Machine Side |
BD Body Dia. |
BDX Body Dia. Max. |
LF Functional Length |
LB Body Length |
LBX Body Length Max. |
CCWS Connection Code Workpiece Side |
WT Weight (lb) |

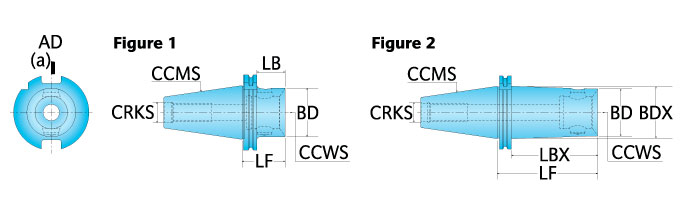

FIGURE Figure |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2941498 | DIN69871-30-IPB50.60 | DIN69871-30-IPB50.60 | DIN69871 | 50.00 mm | - | 2.36 | - | - | IPB-50 | 0.600 | 1 | |
| 2941499 | DIN69871-40-IPB40.45 | DIN69871-40-IPB40.45 | DIN69871-40 | 50.00 mm | - | 1.77 | 1.020 | - | IPB-40 | 0.900 | 1 | |
| 2941500 | DIN69871-40-IPB40.120 | DIN69871-40-IPB40.120 | DIN69871-40 | 40.00 mm | 44.50 mm | 4.72 | - | 3.976 | IPB-40 | 0.900 | 2 | |
| 2941501 | DIN69871-40-IPB50.48 | DIN69871-40-IPB50.48 | DIN69871-40 | 50.000 | - | 1.89 | 1.140 | - | IPB-50 | 0.900 | 1 | |
| 2941502 | DIN69871-40-IPB50.120 | DIN69871-40-IPB50.120 | DIN69871-40 | 50.00 mm | 50.00 mm | 4.72 | - | 3.976 | IPB-50 | 0.900 | 2 | |
| 2941503 | DIN69871-40-IPB63.80 | DIN69871-40-IPB63.80 | DIN69871-40 | 63.00 mm | - | 3.15 | - | - | IPB-63 | 1.500 | 1 | |
| 2941504 | DIN69871-50-IPB50.48 | DIN69871-50-IPB50.48 | DIN69871-50 | 50.00 mm | - | 1.89 | 1.140 | - | IPB-50 | 2.700 | 1 | |
| 2941505 | DIN69871-50-IPB50.120 | DIN69871-50-IPB50.120 | DIN69871-50 | 50.00 mm | 60.00 mm | 4.72 | - | 3.976 | IPB-50 | 2.700 | 2 | |
| 2941506 | DIN69871-50-IPB63.56 | DIN69871-50-IPB63.56 | DIN69871-50 | 63.00 mm | - | 2.20 | 1.460 | - | IPB-63 | 2.800 | 1 | |
| 2941507 | DIN69871-50-IPB63.150 | DIN69871-50-IPB63.150 | DIN69871-50 | 63.00 mm | 73.00 mm | 5.91 | - | 5.157 | IPB-63 | 2.800 | 2 | |
| 2941508 | DIN69871-50-IPB80.62 | DIN69871-50-IPB80.62 | DIN69871-50 | 80.00 mm | - | 2.44 | 1.690 | - | IPB-80 | 3.400 | 1 | |
| 2941509 | DIN69871-50-IPB80.180 | DIN69871-50-IPB80.180 | DIN69871-50 | 80.00 mm | 80.00 mm | 7.09 | - | 6.338 | IPB-80 | 3.400 | 2 |
Notes:
- **For stock D'Andrea items. Refer to series here.
