Series: SN_U13 - Ceramic Insert
Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ceramic Silicone Nitride Inserts
- Pressed Utility Inserts
- Ground Precision Inserts
- 8 indexes
- Corner Radii Options: .031" R

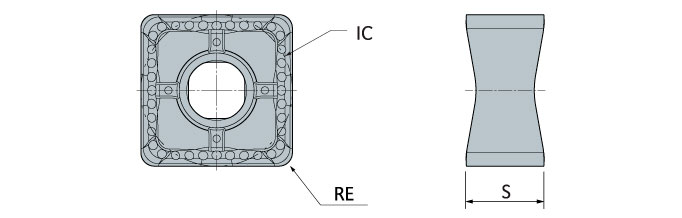

Part Number |
Application |
RE Corner Radius |
IC Inscribed Circle Dia. |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|
| SNGU130604N IN71N | Ceramic - Hardened Steel/Cast Iron | 0.015 | 0.530 | 0.268 | 8 | Neutral | |

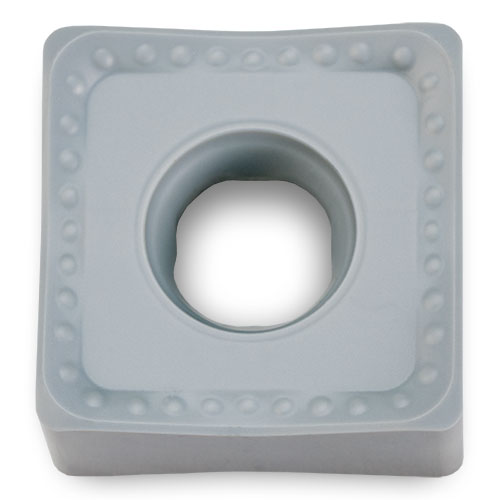

| SNGU130608N IN71N | Ceramic - Hardened Steel/Cast Iron | 0.031 | 0.530 | 0.268 | 8 | Neutral | |
| SNGU130616N IN71N | Ceramic - Hardened Steel/Cast Iron | 0.063 | 0.530 | 0.268 | 8 | Neutral | |

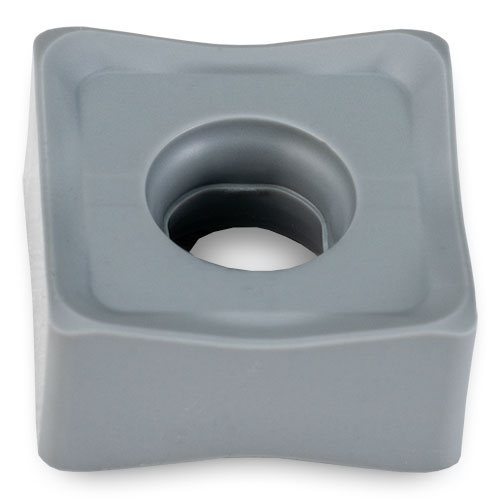

| SNMU130608N | Utility - Ceramic | 0.031 | 0.530 | 0.268 | 8 | Neutral |
