Series: HNMU10_ANN - SiN Insert

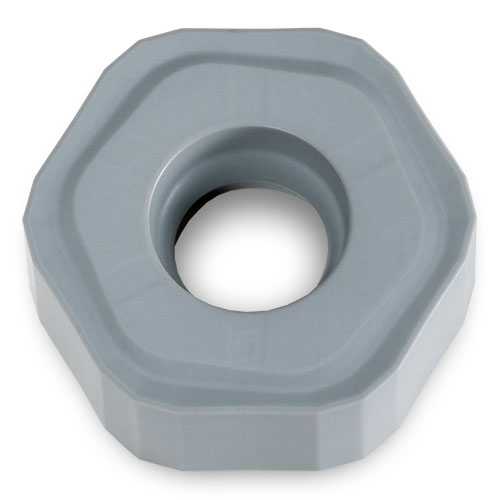

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Pressed rake face geometry promotes efficient chip formation
- Integrated wiper flats
- Designed for high speed machining of cast irons
- 12 indexes
Part Number |
Application |
RE Corner Radius |
BS Wiper Length |
IC Inscribed Circle Dia. |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|
| HNMU1007ANN | SiN for Iron | 0.005 | 0.047 | 0.750 | 0.248 | 12 | Right |
