Series: P3N2R- (Primo-Alu_R) - 3-Flute 90° SCEM

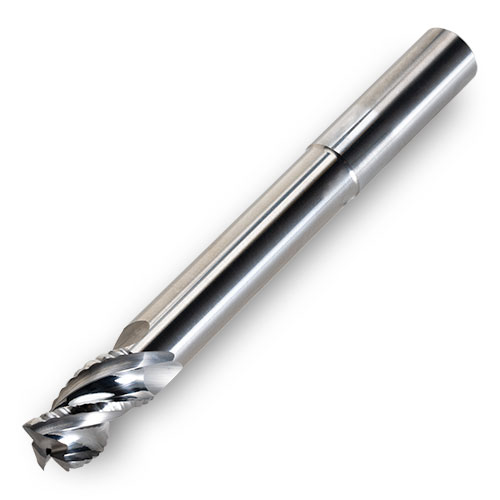

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- (Primo-Alu_R) for Roughing Aluminum
- Ø.250"-1.000"
- Cylindrical shank, Coolant through
- 3-Flute
- Serrated cutting edge
- Variable Pitch
- Variable Helix
- 1.5xD & 2xD APMX, and up to 6xD LUX
- Corner Radius: .015" .030" .060" .090" .125" .188" .250" R

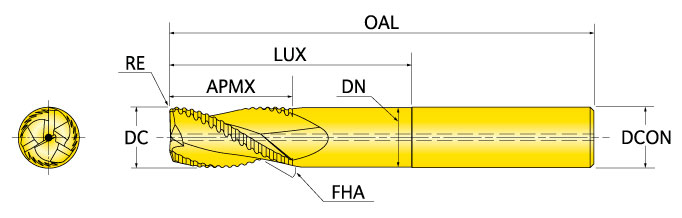

EDP |
Part Number |
DC Cutting Dia. |
RE/CHW Corner Radius/Chamfer |
APMX Depth of Cut Max. |
LUX Usable Length Max. |
ULDR Usable Length Dia. Ratio |
OAL Overall Length |
ZEFF Eff. Teeth |
DN Neck Dia. |
DCON Shank Dia. |
RMPX Ramp Angle Max. |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1927240 | P3N2R-.750A150L300R030C | 0.7500 | 0.030 R | 1.500 | 3.000 | 4× | 5.25 | 3 | 0.722 | 0.750 | 4.0 | NA |
EDP |
Part Number |
DC Cutting Dia. |
RE/CHW Corner Radius/Chamfer |
APMX Depth of Cut Max. |
LUX Usable Length Max. |
ULDR Usable Length Dia. Ratio |
OAL Overall Length |
ZEFF Eff. Teeth |
DN Neck Dia. |
DCON Shank Dia. |
RMPX Ramp Angle Max. |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1927200 | P3N2R-.250A037L125R015C | 0.2500 | 0.015 R | 0.375 | 1.250 | 5× | 2.75 | 3 | 0.222 | 0.250 | 3.5 | NA | |||
| 1927201 | P3N2R-.312A046L156R015C | 0.3125 | 0.015 R | 0.469 | 1.563 | 5× | 3.50 | 3 | 0.285 | 0.313 | 3.5 | NA | |||
| 1927202 | P3N2R-.375A056L187R015C | 0.3750 | 0.015 R | 0.562 | 1.875 | 5× | 3.75 | 3 | 0.347 | 0.375 | 3.5 | NA | |||
| 1927203 | P3N2R-.500A100L200R015C | 0.5000 | 0.015 R | 1.000 | 2.000 | 4× | 3.88 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927204 | P3N2R-.500A075L250R015C | 0.5000 | 0.015 R | 0.750 | 2.500 | 5× | 4.38 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927205 | P3N2R-.500A075L300R015C | 0.5000 | 0.015 R | 0.750 | 3.000 | 6× | 4.88 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927209 | P3N2R-.500A100L200R030C | 0.5000 | 0.030 R | 1.000 | 2.000 | 4× | 3.88 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927210 | P3N2R-.500A075L250R030C | 0.5000 | 0.030 R | 0.750 | 2.500 | 5× | 4.38 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927211 | P3N2R-.500A075L300R030C | 0.5000 | 0.030 R | 0.750 | 3.000 | 6× | 4.88 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927206 | P3N2R-.500A100L200R060C | 0.5000 | 0.060 R | 1.000 | 2.000 | 4× | 3.88 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927207 | P3N2R-.500A075L250R060C | 0.5000 | 0.060 R | 0.750 | 2.500 | 5× | 4.38 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927208 | P3N2R-.500A075L300R060C | 0.5000 | 0.060 R | 0.750 | 3.000 | 6× | 4.88 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927212 | P3N2R-.500A100L200R090C | 0.5000 | 0.090 R | 1.000 | 2.000 | 4× | 3.88 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927213 | P3N2R-.500A075L250R090C | 0.5000 | 0.090 R | 0.750 | 2.500 | 5× | 4.38 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927214 | P3N2R-.500A075L300R090C | 0.5000 | 0.090 R | 0.750 | 3.000 | 6× | 4.88 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1928864 | P3N2R-.500A100L200R125C | 0.5000 | 0.125 R | 1.000 | 2.000 | 4× | 3.88 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927216 | P3N2R-.500A075L250R125C | 0.5000 | 0.125 R | 0.750 | 2.500 | 5× | 4.38 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927217 | P3N2R-.500A075L300R125C | 0.5000 | 0.125 R | 0.750 | 3.000 | 6× | 4.88 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927226 | P3N2R-.625A125L250R015C | 0.6250 | 0.015 R | 1.250 | 2.500 | 4× | 4.50 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927227 | P3N2R-.625A093L312R015C | 0.6250 | 0.015 R | 0.938 | 3.125 | 5× | 5.25 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927228 | P3N2R-.625A093L375R015C | 0.6250 | 0.015 R | 0.938 | 3.750 | 6× | 5.75 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927221 | P3N2R-.625A093L125R030C | 0.6250 | 0.030 R | 0.938 | 1.250 | 2× | 3.25 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927222 | P3N2R-.625A125L187R030C | 0.6250 | 0.030 R | 1.250 | 1.875 | 3× | 4.00 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927218 | P3N2R-.625A125L250R030C | 0.6250 | 0.030 R | 1.250 | 2.500 | 4× | 4.50 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927219 | P3N2R-.625A093L312R030C | 0.6250 | 0.030 R | 0.938 | 3.125 | 5× | 5.25 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927220 | P3N2R-.625A093L375R030C | 0.6250 | 0.030 R | 0.938 | 3.750 | 6× | 5.75 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927223 | P3N2R-.625A125L250R060C | 0.6250 | 0.060 R | 1.250 | 2.500 | 4× | 4.50 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927224 | P3N2R-.625A093L312R060C | 0.6250 | 0.060 R | 0.938 | 3.125 | 5× | 5.25 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927225 | P3N2R-.625A093L375R060C | 0.6250 | 0.060 R | 0.938 | 3.750 | 6× | 5.75 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927229 | P3N2R-.625A125L250R090C | 0.6250 | 0.090 R | 1.250 | 2.500 | 4× | 4.50 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927230 | P3N2R-.625A093L312R090C | 0.6250 | 0.090 R | 0.938 | 3.125 | 5× | 5.25 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927231 | P3N2R-.625A093L375R090C | 0.6250 | 0.090 R | 0.938 | 3.750 | 6× | 5.75 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927235 | P3N2R-.625A093L125R125C | 0.6250 | 0.125 R | 0.938 | 1.250 | 2× | 3.25 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927236 | P3N2R-.625A125L187R125C | 0.6250 | 0.125 R | 1.250 | 1.875 | 3× | 4.00 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927232 | P3N2R-.625A125L250R125C | 0.6250 | 0.125 R | 1.250 | 2.500 | 4× | 4.50 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927233 | P3N2R-.625A093L312R125C | 0.6250 | 0.125 R | 0.938 | 3.125 | 5× | 5.25 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927234 | P3N2R-.625A093L375R125C | 0.6250 | 0.125 R | 0.938 | 3.750 | 6× | 5.75 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927237 | P3N2R-.625A125L250R188C | 0.6250 | 0.188 R | 1.250 | 2.500 | 4× | 4.50 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927238 | P3N2R-.625A093L312R188C | 0.6250 | 0.188 R | 0.938 | 3.125 | 5× | 5.25 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927239 | P3N2R-.625A093L375R188C | 0.6250 | 0.188 R | 0.938 | 3.750 | 6× | 5.75 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927243 | P3N2R-.750A112L150R030C | 0.7500 | 0.030 R | 1.125 | 1.500 | 2× | 3.75 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927244 | P3N2R-.750A150L225R030C | 0.7500 | 0.030 R | 1.500 | 2.250 | 3× | 4.38 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927240 | P3N2R-.750A150L300R030C | 0.7500 | 0.030 R | 1.500 | 3.000 | 4× | 5.25 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927241 | P3N2R-.750A112L375R030C | 0.7500 | 0.030 R | 1.125 | 3.750 | 5× | 6.00 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927242 | P3N2R-.750A112L450R030C | 0.7500 | 0.030 R | 1.125 | 4.500 | 6× | 6.75 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927245 | P3N2R-.750A150L300R060C | 0.7500 | 0.060 R | 1.500 | 3.000 | 4× | 5.25 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927246 | P3N2R-.750A112L375R060C | 0.7500 | 0.060 R | 1.125 | 3.750 | 5× | 6.00 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927247 | P3N2R-.750A112L450R060C | 0.7500 | 0.060 R | 1.125 | 4.500 | 6× | 6.75 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927248 | P3N2R-.750A150L300R090C | 0.7500 | 0.090 R | 1.500 | 3.000 | 4× | 5.25 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927249 | P3N2R-.750A112L375R090C | 0.7500 | 0.090 R | 1.125 | 3.750 | 5× | 6.00 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927250 | P3N2R-.750A112L450R090C | 0.7500 | 0.090 R | 1.125 | 4.500 | 6× | 6.75 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927254 | P3N2R-.750A112L150R125C | 0.7500 | 0.125 R | 1.125 | 1.500 | 2× | 3.75 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927255 | P3N2R-.750A150L225R125C | 0.7500 | 0.125 R | 1.500 | 2.250 | 3× | 4.38 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927251 | P3N2R-.750A150L300R125C | 0.7500 | 0.125 R | 1.500 | 3.000 | 4× | 5.25 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927252 | P3N2R-.750A112L375R125C | 0.7500 | 0.125 R | 1.125 | 3.750 | 5× | 6.00 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927253 | P3N2R-.750A112L450R125C | 0.7500 | 0.125 R | 1.125 | 4.500 | 6× | 6.75 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927256 | P3N2R-.750A150L300R188C | 0.7500 | 0.188 R | 1.500 | 3.000 | 4× | 5.25 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927257 | P3N2R-.750A112L375R188C | 0.7500 | 0.188 R | 1.125 | 3.750 | 5× | 6.00 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927258 | P3N2R-.750A112L450R188C | 0.7500 | 0.188 R | 1.125 | 4.500 | 6× | 6.75 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927259 | P3N2R-.750A150L300R250C | 0.7500 | 0.250 R | 1.500 | 3.000 | 4× | 5.25 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927260 | P3N2R-.750A112L375R250C | 0.7500 | 0.250 R | 1.125 | 3.750 | 5× | 6.00 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927261 | P3N2R-.750A112L450R250C | 0.7500 | 0.250 R | 1.125 | 4.500 | 6× | 6.75 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927265 | P3N2R-1.00A150L200R030C | 1.0000 | 0.030 R | 1.500 | 2.000 | 2× | 4.38 | 3 | 0.972 | 1.000 | 4.0 | NA | |||
| 1927266 | P3N2R-1.00A200L300R030C | 1.0000 | 0.030 R | 2.000 | 3.000 | 3× | 5.38 | 3 | 0.972 | 1.000 | 4.0 | NA | |||
| 1927262 | P3N2R-1.00A200L400R030C | 1.0000 | 0.030 R | 2.000 | 4.000 | 4× | 6.38 | 3 | 0.972 | 1.000 | 4.0 | NA | |||
| 1927263 | P3N2R-1.00A150L500R030C | 1.0000 | 0.030 R | 1.500 | 5.000 | 5× | 7.38 | 3 | 0.972 | 1.000 | 4.0 | NA | |||
| 1927264 | P3N2R-1.00A150L600R030C | 1.0000 | 0.030 R | 1.500 | 6.000 | 6× | 8.38 | 3 | 0.972 | 1.000 | 4.0 | NA | |||
| 1927267 | P3N2R-1.00A200L400R060C | 1.0000 | 0.060 R | 2.000 | 4.000 | 4× | 6.38 | 3 | 0.972 | 1.000 | 4.0 | NA | |||
| 1927268 | P3N2R-1.00A150L600R060C | 1.0000 | 0.060 R | 1.500 | 6.000 | 6× | 8.50 | 3 | 0.972 | 1.000 | 4.0 | NA | |||
| 1927269 | P3N2R-1.00A200L400R090C | 1.0000 | 0.090 R | 2.000 | 4.000 | 4× | 6.38 | 3 | 0.972 | 1.000 | 4.0 | NA | |||
| 1927270 | P3N2R-1.00A150L500R090C | 1.0000 | 0.090 R | 1.500 | 5.000 | 5× | 7.38 | 3 | 0.972 | 1.000 | 4.0 | NA | |||
| 1927271 | P3N2R-1.00A150L600R090C | 1.0000 | 0.090 R | 1.500 | 6.000 | 6× | 8.50 | 3 | 0.972 | 1.000 | 4.0 | NA | |||
| 1927275 | P3N2R-1.00A150L225R125C | 1.0000 | 0.125 R | 1.500 | 2.250 | 2× | 4.63 | 3 | 0.972 | 1.000 | 4.0 | NA | |||
| 1927276 | P3N2R-1.00A200L300R125C | 1.0000 | 0.125 R | 2.000 | 3.000 | 3× | 5.38 | 3 | 0.972 | 1.000 | 4.0 | NA | |||
| 1927272 | P3N2R-1.00A200L400R125C | 1.0000 | 0.125 R | 2.000 | 4.000 | 4× | 6.38 | 3 | 0.972 | 1.000 | 4.0 | NA | |||
| 1927273 | P3N2R-1.00A150L500R125C | 1.0000 | 0.125 R | 1.500 | 5.000 | 5× | 7.38 | 3 | 0.972 | 1.000 | 4.0 | NA | |||
| 1927274 | P3N2R-1.00A150L600R125C | 1.0000 | 0.125 R | 1.500 | 6.000 | 6× | 8.38 | 3 | 0.972 | 1.000 | 4.0 | NA | |||
| 1927277 | P3N2R-1.00A200L400R188C | 1.0000 | 0.188 R | 2.000 | 4.000 | 4× | 6.38 | 3 | 0.972 | 1.000 | 4.0 | NA | |||
| 1927278 | P3N2R-1.00A150L600R188C | 1.0000 | 0.188 R | 1.500 | 6.000 | 6× | 8.50 | 3 | 0.972 | 1.000 | 4.0 | NA | |||
| 1927279 | P3N2R-1.00A200L400R250C | 1.0000 | 0.250 R | 2.000 | 4.000 | 4× | 6.38 | 3 | 0.972 | 1.000 | 4.0 | NA | |||
| 1927280 | P3N2R-1.00A150L600R250C | 1.0000 | 0.250 R | 1.500 | 6.000 | 6× | 8.50 | 3 | 0.972 | 1.000 | 4.0 | NA |
