Series: VCGT CF Chipbreaker

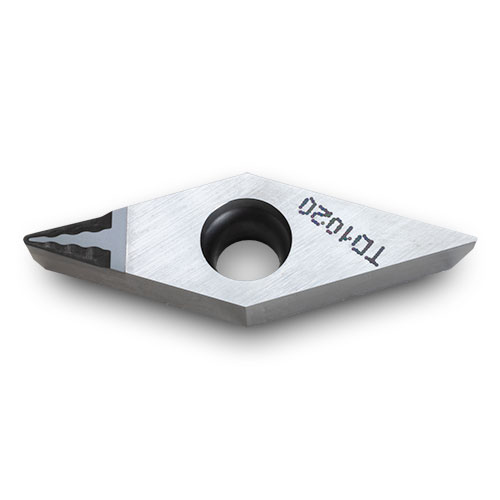

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Positive 7° clearance 35° rhombic PCD-tipped inserts
- For finishing applications
ANSI Number |
ISO Number |
NOI Number of Indexes |
IC Inscribed Circle Dia. |
RE Corner Radius |
LE Cutting Edge Eff. Length |
S Thickness |
D1 Fixing Hole Dia. |
fn Cutting Feed Min. |
fn Cutting Feed Max. |
ap Cutting Depth Min. |
ap Cutting Depth Max. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VCGT332CF | VCGT160408CF | 1 | 0.375 | 0.031 | 0.252 | 0.187 | 0.150 | 0.0020 | 0.0080 | 0.004 | 0.039 |
ANSI Number |
ISO Number |
NOI Number of Indexes |
IC Inscribed Circle Dia. |
RE Corner Radius |
LE Cutting Edge Eff. Length |
S Thickness |
D1 Fixing Hole Dia. |
fn Cutting Feed Min. |
fn Cutting Feed Max. |
ap Cutting Depth Min. |
ap Cutting Depth Max. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VCGT331CF | VCGT160404CF | 1 | 0.375 | 0.016 | 0.287 | 0.187 | 0.150 | 0.0020 | 0.0080 | 0.004 | 0.039 | |
| VCGT332CF | VCGT160408CF | 1 | 0.375 | 0.031 | 0.252 | 0.187 | 0.150 | 0.0020 | 0.0080 | 0.004 | 0.039 |
