Series: ITSRG-B - Blind Hole PCD Reamers

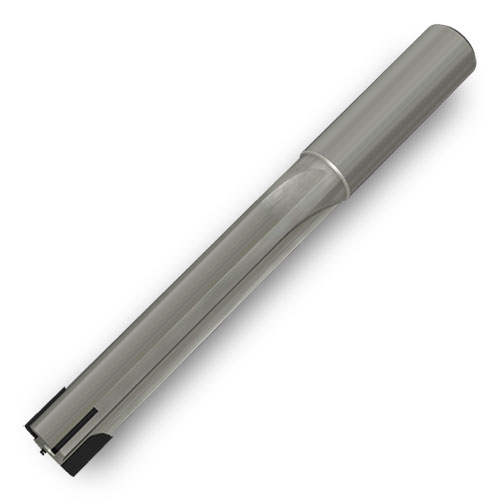

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø 6 mm - 16 mm
- Ø 0.25" - 0.75"
- Solid Carbide Cylindrical Shanks - Coolant Through
- 5 x D
- H7 Tolerance
- Ask about Semi Standard Reamers for any special diameters
EDP |
Part Number |

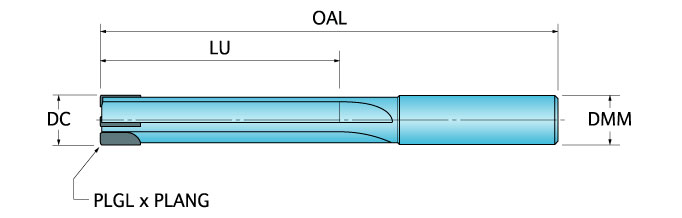

DC Cutting Dia. |
DMM Shank Dia. |
OAL Overall Length |
LU Usable Length |
Z Teeth |
PLGL Plug Length |
PLGANG Plug Angle |
|
|---|---|---|---|---|---|---|---|---|---|
| 2754066 | ITSRG-B-D06.000-C02 | 6.00 mm | 6.00 mm | 79.0 mm | 39.0 mm | 2 | 0.20 mm | 45.0 | |
| 2754056 | ITSRG-B-D08.000-C02 | 8.00 mm | 8.00 mm | 92.0 mm | 52.0 mm | 4 | 0.20 mm | 45.0 | |
| 2754037 | ITSRG-B-D10.000-C04 | 10.00 mm | 10.00 mm | 106.0 mm | 62.0 mm | 4 | 0.04 mm | 45.0 | |
| 2754057 | ITSRG-B-D12.000-C04 | 12.000 | 12.00 mm | 124.0 mm | 74.0 mm | 4 | 0.04 mm | 45.0 | |
| NA | ITSRG-B-D14.000-C04 | 14.00 mm | 14.00 mm | 135.0 mm | 85.0 mm | 4 | 0.04 mm | 45.0 | |
| NA | ITSRG-B-D16.000-C04 | 16.00 mm | 16.00 mm | 150.0 mm | 97.0 mm | 4 | 0.04 mm | 45.0 | |
| NA | ITSRG-B-D18.000-C04 | 18.00 mm | 18.00 mm | 164.0 mm | 97.0 mm | 4 | 0.04 mm | 45.0 | |
| NA | ITSRG-B-D20.000-C04 | 20.00 mm | 20.00 mm | 164.0 mm | 100.0 mm | 4 | 0.04 mm | 45.0 | |
| NA | ITSRG-B-I00.250-C02 | 0.250 | 6.00 mm | 3.11 | 1.54 | 2 | 0.01 mm | 45.0 | |
| NA | ITSRG-B-I00.375-C04 | 0.375 | 10.00 mm | 4.17 | 2.05 | 4 | 0.02 mm | 45.0 | |
| NA | ITSRG-B-I00.500-C04 | 0.500 | 14.00 mm | 5.31 | 3.35 | 4 | 0.02 mm | 45.0 | |
| NA | ITSRG-B-I00.625-C04 | 0.625 | 16.00 mm | 5.91 | 3.82 | 4 | 0.02 mm | 45.0 | |
| NA | ITSRG-B-I00.750-C04 | 0.750 | 20.00 mm | 6.46 | 3.75 | 4 | 0.02 mm | 45.0 |
