Series: SCACR-SH-TB - External Holder

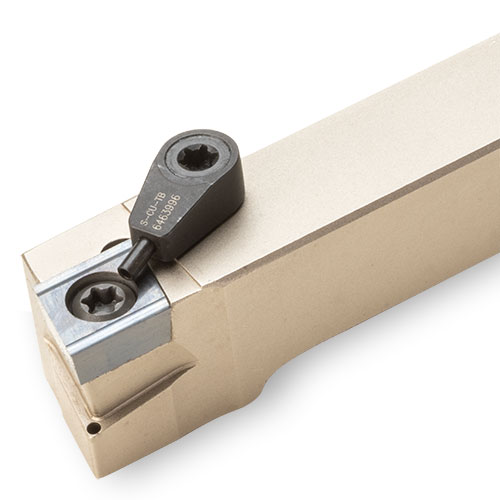

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Positive 80° CC_T/CC_W Inserts
- 0° Lead, Screw Held, Right Hand
- .500" Shank
- High Pressure Coolant
EDP |
Part Number |

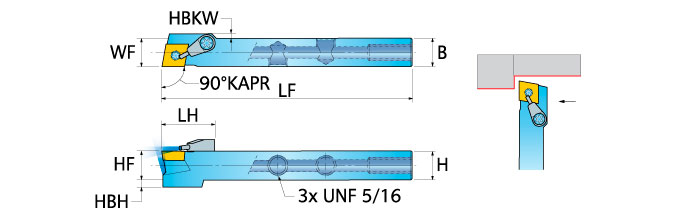

H Shank Height |
HF Functional Height |
B Shank Width |
LF Functional Length |
WF Functional Width |
LH Head Length |
HBH Head Bottom Offset Height |
HBKW Head Back Offset Width |
CSP Coolant |
KAPR Cutting Edge Angle |
HAND Hand |
MIID Master Insert Identification |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6211007 | SCACR08-3C-SH-TB | 0.500 | 0.500 | 0.500 | 5.0 | 0.500 | 0.87 | 0.091 | 0.05 | Yes | 90 | Right | CCMT09T302FA |
