Series: SCLCR-SH-TB - External Holder
Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Positive 80° CC_T/CC_W Inserts
- -5° Lead, Screw Held
- .500-.625" Shank
- High-Pressure Coolant
EDP |
Part Number |
H Shank Height |
HF Functional Height |

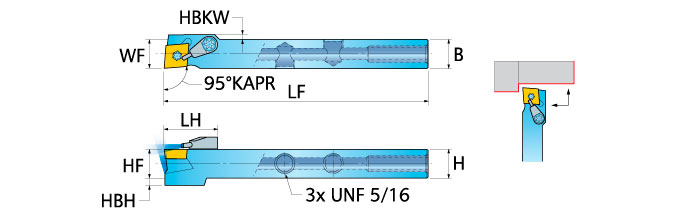

B Shank Width |
LF Functional Length |
WF Functional Width |
LH Head Length |
HBH Head Bottom Offset Height |
HBKW Head Back Offset Width |
HAND Hand |
MIID Master Insert Identification |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6211004 | SCLCR08-3C-SH-TB | 0.500 | 0.500 | 0.500 | 5.0 | 0.500 | 0.87 | 0.091 | 0.05 | Right | CCMT09T302FA | ||||
| 6211006 | SCLCR10-3C-SH-TB | 0.625 | 0.625 | 0.625 | 5.0 | 0.625 | 0.87 | - | - | Right | CCMT09T302FA |
