Series: TD_X7 (M12 TopOn) 4xD Replaceable Tip Drill

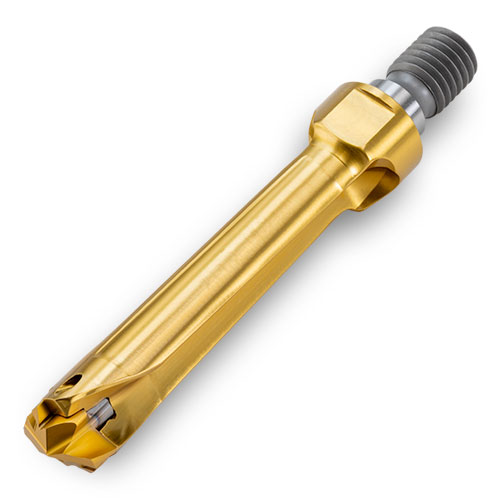

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø.3937"-.6260" (10.0-15.9 mm)
- M12 TopOn Connection
- Coolant Through
- Holds +.002/-.000 on Hole Diameter
EDP |
Part Number |
DCN Cutting Dia. Min. |
DCX Cutting Dia. Max. |
SSC Insert Seat Size |
LU Usable Length |
LF Functional Length |
CCMS Connection Code Machine Side |
DHUB Hub Dia. |
|
|---|---|---|---|---|---|---|---|---|---|
| 6261404 | TD1300052X7R00 | 0.5118 (13.00 mm) | 0.5276 (13.40 mm) | 13 | 2.45 | 2.84 | TopOn M12 | 19 mm |
Notes:
- *Do not mount a smaller drill point than the one listed with the tool.
EDP |
Part Number |
DCN Cutting Dia. Min. |
DCX Cutting Dia. Max. |
SSC Insert Seat Size |
LU Usable Length |
LF Functional Length |
CCMS Connection Code Machine Side |
DHUB Hub Dia. |
|
|---|---|---|---|---|---|---|---|---|---|
| 6258115 | TD1000040X7R00 | 0.3937 (10.00 mm) | 0.4094 (10.40 mm) | 10 | 1.92 | 2.36 | TopOn M12 | 19 mm | |
| 6261399 | TD1050042X7R00 | 0.4134 (10.50 mm) | 0.4291 (10.90 mm) | 10.5 | 2.00 | 2.44 | TopOn M12 | 19 mm | |
| 6261400 | TD1100044X7R00 | 0.4331 (11.00 mm) | 0.4488 (11.40 mm) | 11 | 2.09 | 2.52 | TopOn M12 | 19 mm | |
| 6261401 | TD1150046X7R00 | 0.4528 (11.50 mm) | 0.4685 (11.90 mm) | 11.5 | 2.17 | 2.60 | TopOn M12 | 19 mm | |
| 6261402 | TD1200048X7R00 | 0.4724 (12.00 mm) | 0.4882 (12.40 mm) | 12 | 2.26 | 2.68 | TopOn M12 | 19 mm | |
| 6261403 | TD1250050X7R00 | 0.4921 (12.50 mm) | 0.5079 (12.90 mm) | 12.5 | 2.34 | 2.76 | TopOn M12 | 19 mm | |
| 6261404 | TD1300052X7R00 | 0.5118 (13.00 mm) | 0.5276 (13.40 mm) | 13 | 2.45 | 2.84 | TopOn M12 | 19 mm | |
| 6261405 | TD1350054X7R00 | 0.5315 (13.50 mm) | 0.5472 (13.90 mm) | 13.5 | 2.52 | 2.91 | TopOn M12 | 19 mm | |
| 6261406 | TD1400056X7R00 | 0.5512 (14.00 mm) | 0.5669 (14.40 mm) | 14 | 2.63 | 2.99 | TopOn M12 | 19 mm | |
| 6261407 | TD1450058X7R00 | 0.5709 (14.50 mm) | 0.5866 (14.90 mm) | 14.5 | 2.71 | 3.07 | TopOn M12 | 19 mm | |
| 6261408 | TD1500060X7R00 | 0.5906 (15.00 mm) | 0.6260 (15.90 mm) | 15 | 2.80 | 3.15 | TopOn M12 | 19 mm |
