Series: TD_X7 (M12 TopOn) 2xD Replaceable Tip Drill

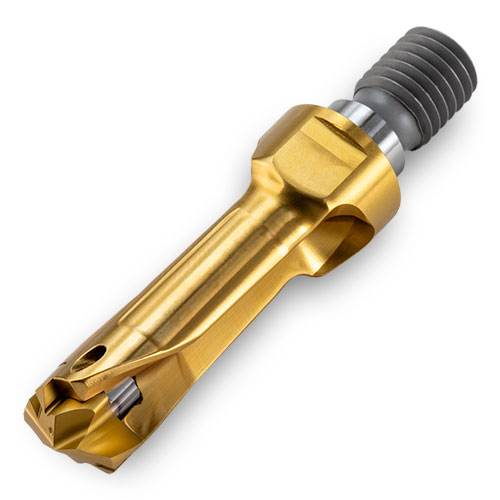

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø.3937"-.6260" (10.0-15.9 mm)
- M12 TopOn Connection
- Coolant Through
- Holds +.002/-.000 on Hole Diameter
EDP |
Part Number |
DCN Cutting Dia. Min. |
DCX Cutting Dia. Max. |
SSC Insert Seat Size |
LU Usable Length |
LF Functional Length |
CCMS Connection Code Machine Side |
DHUB Hub Dia. |
|
|---|---|---|---|---|---|---|---|---|---|
| 6261395 | TD1350027X7R00 | 0.5315 (13.50 mm) | 0.5472 (13.90 mm) | 13.5 | 1.46 | 2.40 | TopOn M12 | 19 mm |
Notes:
- *Do not mount a smaller drill point than the one listed with the tool.
EDP |
Part Number |
DCN Cutting Dia. Min. |
DCX Cutting Dia. Max. |
SSC Insert Seat Size |
LU Usable Length |
LF Functional Length |
CCMS Connection Code Machine Side |
DHUB Hub Dia. |
|
|---|---|---|---|---|---|---|---|---|---|
| 6261388 | TD1000012X7R00 | 0.3937 (10.00 mm) | 0.4094 (10.40 mm) | 10 | 1.13 | 1.58 | TopOn M12 | 19 mm | |
| 6261389 | TD1050021X7R00 | 0.4134 (10.50 mm) | 0.4291 (10.90 mm) | 10.5 | 1.17 | 2.05 | TopOn M12 | 19 mm | |
| 6261390 | TD1100022X7R00 | 0.4331 (11.00 mm) | 0.4488 (11.40 mm) | 11 | 1.22 | 2.09 | TopOn M12 | 19 mm | |
| 6261391 | TD1150023X7R00 | 0.4528 (11.50 mm) | 0.4685 (11.90 mm) | 11.5 | 1.26 | 2.17 | TopOn M12 | 19 mm | |
| 6261392 | TD1200024X7R00 | 0.4724 (12.00 mm) | 0.4882 (12.40 mm) | 12 | 1.32 | 2.20 | TopOn M12 | 19 mm | |
| 6261393 | TD1250025X7R00 | 0.4921 (12.50 mm) | 0.5079 (12.90 mm) | 12.5 | 1.36 | 2.24 | TopOn M12 | 19 mm | |
| 6261394 | TD1300026X7R00 | 0.5118 (13.00 mm) | 0.5276 (13.40 mm) | 13 | 1.42 | 2.32 | TopOn M12 | 19 mm | |
| 6261395 | TD1350027X7R00 | 0.5315 (13.50 mm) | 0.5472 (13.90 mm) | 13.5 | 1.46 | 2.40 | TopOn M12 | 19 mm | |
| 6261396 | TD1400028X7R00 | 0.5512 (14.00 mm) | 0.5669 (14.40 mm) | 14 | 1.52 | 2.44 | TopOn M12 | 19 mm | |
| 6261397 | TD1450029X7R00 | 0.5709 (14.50 mm) | 0.5866 (14.90 mm) | 14.5 | 1.56 | 2.52 | TopOn M12 | 19 mm | |
| 6261398 | TD1500030X7R00 | 0.5906 (15.00 mm) | 0.6260 (15.90 mm) | 15 | 1.62 | 2.56 | TopOn M12 | 19 mm |
