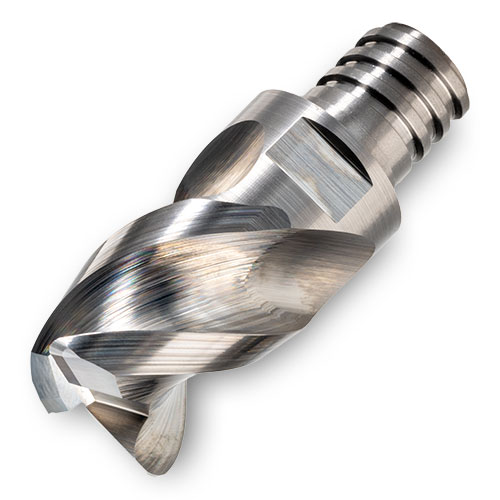

Series: 46D-P & 46J-P - 90° End Mill Tip for Aluminum
Product Series Features:
- Ø.375 - 1.250"
- Chip Surfer Connection
- 3 Flute, 45° Helix
- 1.0XD Flute Length
- Center-cutting
- Corners: SC, .030", .060", .090", .123", .190", .250", .375" R
- Sharp and uncoated for nonferrous materials
EDP |
Part Number |

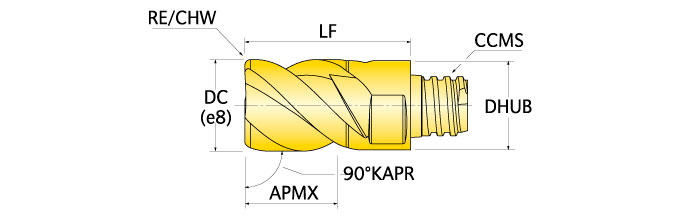

DC Cutting Dia. |
RE/CHW Corner Radius/Chamfer |
APMX Depth of Cut Max. |
LF Functional Length |
ZEFF Eff. Flutes |
FHA Flute Helix Angle |
CCMS Connection Code Machine Side |
DHUB Hub Dia. |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 2938400 | 46D-3737T6RQ03-P IN05S | 0.375 | 0.030 R | 0.375 | 0.748 | 3 | 45 | Chip Surfer T06 | 0.366 | |
| 2938401 | 46D-3737T6RQ06-P IN05S | 0.375 | 0.060 R | 0.375 | 0.748 | 3 | 45 | Chip Surfer T06 | 0.366 | |
| 2938399 | 46J-3737T6RQ07-P IN05S | 0.375 | Sharp | 0.375 | 0.748 | 3 | 45 | Chip Surfer T06 | 0.366 | |
| 2938403 | 46D-5050T8RQ03-P IN05S | 0.500 | 0.030 R | 0.500 | 0.906 | 3 | 45 | Chip Surfer T08 | 0.488 | |
| 2938404 | 46D-5050T8RQ06-P IN05S | 0.500 | 0.060 R | 0.500 | 0.906 | 3 | 45 | Chip Surfer T08 | 0.488 | |
| 2938405 | 46D-5050T8RQ09-P IN05S | 0.500 | 0.090 R | 0.500 | 0.906 | 3 | 45 | Chip Surfer T08 | 0.488 | |
| 2938406 | 46D-5050T8RQ12-P IN05S | 0.500 | 0.123 R | 0.500 | 0.906 | 3 | 45 | Chip Surfer T08 | 0.488 | |
| 2938402 | 46J-5050T8RQ09-P IN05S | 0.500 | Sharp | 0.500 | 0.906 | 3 | 45 | Chip Surfer T08 | 0.488 | |
| 2938408 | 46D-6262TRRQ03-P IN05S | 0.625 | 0.030 R | 0.625 | 1.102 | 3 | 45 | Chip Surfer T10 | 0.602 | |
| 2938409 | 46D-6262TRRQ06-P IN05S | 0.625 | 0.060 R | 0.625 | 1.102 | 3 | 45 | Chip Surfer T10 | 0.602 | |
| 2938410 | 46D-6262TRRQ09-P IN05S | 0.625 | 0.090 R | 0.625 | 1.102 | 3 | 45 | Chip Surfer T10 | 0.602 | |
| 2938411 | 46D-6262TRRQ12-P IN05S | 0.625 | 0.123 R | 0.625 | 1.102 | 3 | 45 | Chip Surfer T10 | 0.602 | |
| 2938407 | 46J-6262TRRQ11-P IN05S | 0.625 | Sharp | 0.625 | 1.102 | 3 | 45 | Chip Surfer T10 | 0.602 | |
| 2938413 | 46D-7575TSRQ03-P IN05S | 0.750 | 0.030 R | 0.750 | 1.339 | 3 | 45 | Chip Surfer T12 | 0.726 | |
| 2938414 | 46D-7575TSRQ06-P IN05S | 0.750 | 0.060 R | 0.750 | 1.339 | 3 | 45 | Chip Surfer T12 | 0.726 | |
| 2938415 | 46D-7575TSRQ09-P IN05S | 0.750 | 0.090 R | 0.750 | 1.339 | 3 | 45 | Chip Surfer T12 | 0.726 | |
| 2938416 | 46D-7575TSRQ12-P IN05S | 0.750 | 0.123 R | 0.750 | 1.339 | 3 | 45 | Chip Surfer T12 | 0.726 | |
| 2938417 | 46D-7575TSRQ19-P IN05S | 0.750 | 0.190 R | 0.750 | 1.339 | 3 | 45 | Chip Surfer T12 | 0.726 | |
| 2938418 | 46D-7575TSRQ25-P IN05S | 0.750 | 0.250 R | 0.750 | 1.339 | 3 | 45 | Chip Surfer T12 | 0.726 | |
| 2938412 | 46J-7575TSRQ13-P IN05S | 0.750 | Sharp | 0.750 | 1.339 | 3 | 45 | Chip Surfer T12 | 0.726 | |
| 2938420 | 46DE1010TURQ03-P IN05S | 1.000 | 0.030 R | 1.000 | 1.032 | 3 | 45 | Chip Surfer T15 | 0.941 | |
| 2938421 | 46DE1010TURQ06-P IN05S | 1.000 | 0.060 R | 1.000 | 1.032 | 3 | 45 | Chip Surfer T15 | 0.941 | |
| 2938422 | 46DE1010TURQ09-P IN05S | 1.000 | 0.090 R | 1.000 | 1.032 | 3 | 45 | Chip Surfer T15 | 0.941 | |
| 2938423 | 46DE1010TURQ12-P IN05S | 1.000 | 0.123 R | 1.000 | 1.032 | 3 | 45 | Chip Surfer T15 | 0.941 | |
| 2938424 | 46DE1010TURQ19-P IN05S | 1.000 | 0.190 R | 1.000 | 1.032 | 3 | 45 | Chip Surfer T15 | 0.941 | |
| 2938425 | 46DE1010TURQ25-P IN05S | 1.000 | 0.250 R | 1.000 | 1.032 | 3 | 45 | Chip Surfer T15 | 0.941 | |
| 2938419 | 46JE1010TURQ10-P IN05S | 1.000 | Sharp | 1.000 | 1.032 | 3 | 45 | Chip Surfer T15 | 0.941 | |
| 2938427 | 46DE1212TWRQ03-P IN05S | 1.250 | 0.030 R | 1.250 | 2.165 | 3 | 45 | Chip Surfer T21 | 1.180 | |
| 2938428 | 46DE1212TWRQ06-P IN05S | 1.250 | 0.060 R | 1.250 | 2.165 | 3 | 45 | Chip Surfer T21 | 1.180 | |
| 2938429 | 46DE1212TWRQ09-P IN05S | 1.250 | 0.090 R | 1.250 | 2.165 | 3 | 45 | Chip Surfer T21 | 1.180 | |
| 2938430 | 46DE1212TWRQ12-P IN05S | 1.250 | 0.123 R | 1.250 | 2.165 | 3 | 45 | Chip Surfer T21 | 1.180 | |
| 2938431 | 46DE1212TWRQ19-P IN05S | 1.250 | 0.190 R | 1.250 | 2.165 | 3 | 45 | Chip Surfer T21 | 1.180 | |
| 2938432 | 46DE1212TWRQ25-P IN05S | 1.250 | 0.250 R | 1.250 | 2.165 | 3 | 45 | Chip Surfer T21 | 1.180 | |
| 2938433 | 46DE1212TWRQ37-P IN05S | 1.250 | 0.375 R | 1.250 | 2.165 | 3 | 45 | Chip Surfer T21 | 1.180 | |
| 2938426 | 46JE1212TWRQ21-P IN05S | 1.250 | Sharp | 1.250 | 2.165 | 3 | 45 | Chip Surfer T21 | 1.180 |
Notes:
- When assembling, be sure tip is seated firmly on shank with no gap. No lubricant on adaption. Wrenches sold seperately.
