Series: S*T*VA - Anti Vibe Shank, Necked
Product Series Features:
- Cylindrical Shank (Metric)
- Chip Surfer Connection
- Necked
- Enables machining with larger overhang
- Useful in deep cavity machining applications
- Carbide body with built-in vibration-damping mechanism
EDP |
Part Number |
DCON Shank Dia. |
CCWS Connection Code Workpiece Side |
LB Body Length |
LBX Body Length Max. |
OAL Overall Length |
BD Body Dia. |
|
|---|---|---|---|---|---|---|---|---|
| 2938267 | S020T12VA120 | 20.00 mm | Chip Surfer T12 | 118.80 mm | 120.00 mm | 175.00 mm | 19.70 mm | |
| 2938555 | S020T12VA145 | 20.00 mm | Chip Surfer T12 | 143.60 mm | 145.00 mm | 200.00 mm | 19.70 mm | |
| 2938268 | S025T15VA150 | 25.00 mm | Chip Surfer T15 | 148.60 mm | 150.00 mm | 210.00 mm | 24.60 mm | |
| 2938269 | S025T15VA190 | 25.00 mm | Chip Surfer T15 | 188.60 mm | 190.00 mm | 250.00 mm | 24.60 mm |
Notes:

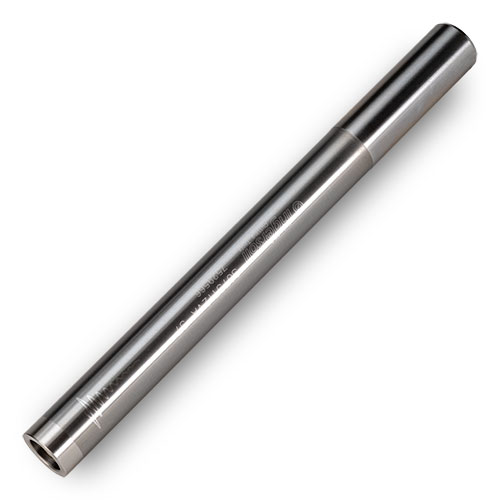

- *Images are a representation of the product series as a whole and therefore may not be an exact representation of a specific item
- Use of Extensions & Reducers between the anti-vibe shank and tip is not recommended.
