Series: 48D_RQ - 90° Variable Pitch End Mill Tip for SS & Hi-Temps

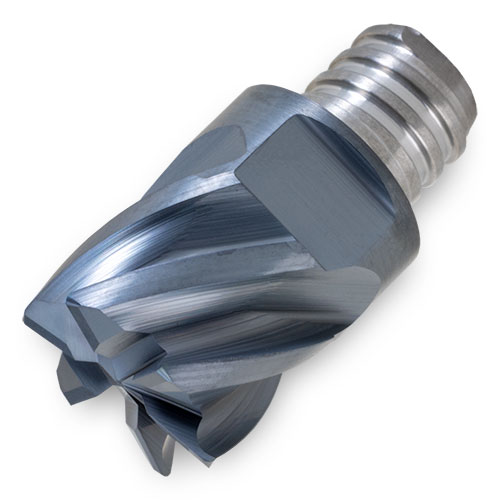

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø.312-1.000"
- Chip Surfer Connection
- 6 Flute, 35°/38° Helix
- .7xD Flute Length
- Variable Pitch
- Center Cutting
- Corner: .015", .020", .030", .040" R

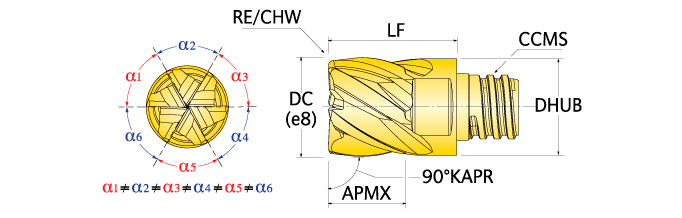

EDP |
Part Number |
DC Cutting Dia. |
RE/CHW Corner Radius/Chamfer |
APMX Depth of Cut Max. |
LF Functional Length |
ZEFF Eff. Flutes |
FHA Flute Helix Angle |
KAPR Cutting Edge Angle |
CCMS Connection Code Machine Side |
DHUB Hub Dia. |
CSP Coolant |
RMPX Ramp Angle Max. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2938249 | 48D-5037T8RQ02 IN2005 | 0.500 | 0.020 R | 0.370 | 0.650 | 6 | 35/38 | 90 | Chip Surfer T08 | 0.488 | No | 5.0 |
Notes:
- When assembling, be sure tip is seated firmly on shank with no gap. No lubricant on adaption. Wrenches sold seperately.
- Best suited with Weldon
