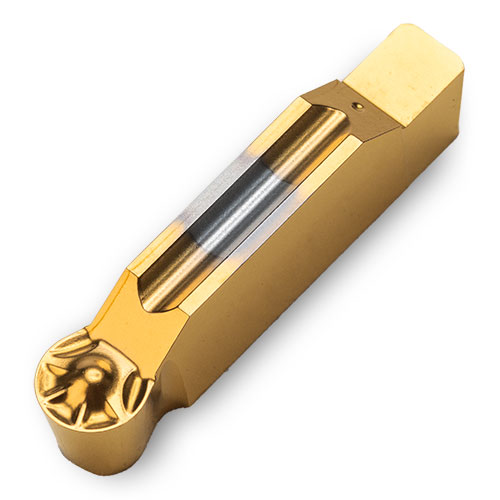

Series: TST-E RS
Product Series Features:
- Full Radius
- Precision Single-Ended Insert
- For Turning, Grooving, & Profiling
- RS-Type Chipbreaker

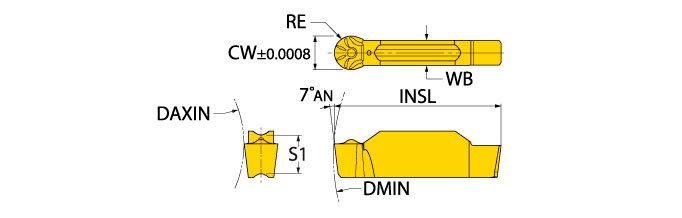

Part Number |
SSC Insert Seat Size |
CW Cutting Width |
RE Corner Radius |
WB Body Width |
INSL Insert Length |
S1 Thickness |
DAXIN Axial Groove I.D. Min. |
DMIN Min. Bore Dia. |
FEEDGN Grooving Feed Min. |
FEEDGX Grooving Feed Max. |
FEEDN Turning Feed Min. |
FEEDX Turning Feed Max. |
APMX Turning Depth of Cut Max. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TST3.00E-1.50-RS | 3 | 0.118 | 0.059 | 0.094 | 0.780 | 0.185 | 1.614 | 1.496 | 0.0040 | 0.0070 | 0.006 | 0.011 | 0.059 | |
| TST4.00E-2.00-RS | 4 | 0.157 | 0.079 | 0.118 | 0.780 | 0.185 | 1.417 | 1.496 | 0.0040 | 0.0080 | 0.007 | 0.014 | 0.079 | |
| TST5.00E-2.50-RS | 5 | 0.197 | 0.098 | 0.157 | 0.984 | 0.185 | 2.126 | 1.693 | 0.0050 | 0.0090 | 0.010 | 0.021 | 0.098 | |
| TST6.00E-3.00-RS | 6 | 0.236 | 0.118 | 0.197 | 0.984 | 0.185 | 2.126 | 1.811 | 0.0060 | 0.0110 | 0.012 | 0.026 | 0.118 | |
| TST6.35E-3.18-RS | 6 | 0.250 | 0.125 | 0.197 | 0.984 | 0.185 | 2.126 | 1.811 | 0.0060 | 0.0110 | 0.012 | 0.026 | 0.118 |
Groove-Turn Chip Breakers
- 1st choice for general use in groove-turn
- Multi functional chip breaker for external, internal, and face machining
- Low cutting force and good chip control
- Medium-to-high feed grooving, low-to-medium feed turning
- Steel, stainless steel and heat resistant alloy
- For external and internal grooving as well as turning applications
- Good chip control when external face grooving and turning
- Flat bottom surface machining
- Low-to-medium feed grooving, medium-to-high feed turning
- Ideal for steel, stainless steel, cast iron and super alloys machining
- Stable cutting edge and flat bottom surface machining in grooving and parting
- Covers C-type chip breaker applications including a built-in chip breaker for turning applications
- Medium-to-high feed range
- Steel, cast iron, stainless steel and heat resistant alloys
- 1st choice for side turning of cast iron
- Turning and grooving with various geometry
- Steel and cast iron
- High feed rate
- 1st choice for profiling in steel and cast iron
- Tough cutting edge
- Good chip control even in low depth
- Good surface finish
- High feed rate and low depth of cut
- 1st choice for medium to finishing machining of heat-resistant super alloys
- For external and internal profiling, turning and grooving applications
- Low cutting force and good surface finish due to the sharp edge
- Precision machining and excellent repeatability
- 1st choice for profiling in non-ferrous materials
- Very sharp cutting edge
- Ceramic insert
- Recommended for aged cast iron material
- Not recommended for grooving in steel
