Series: K03 (TRM 80/125)
Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Does NOT include TRM head

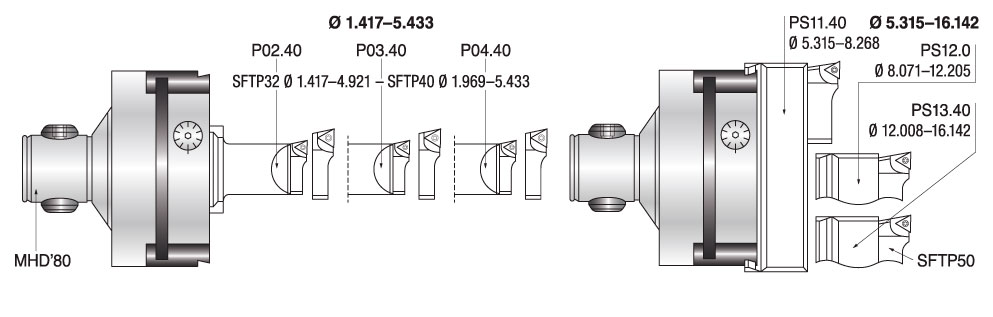

- Dia. Range: 1.417" - 16.142"
- (36.0mm-410.0mm)

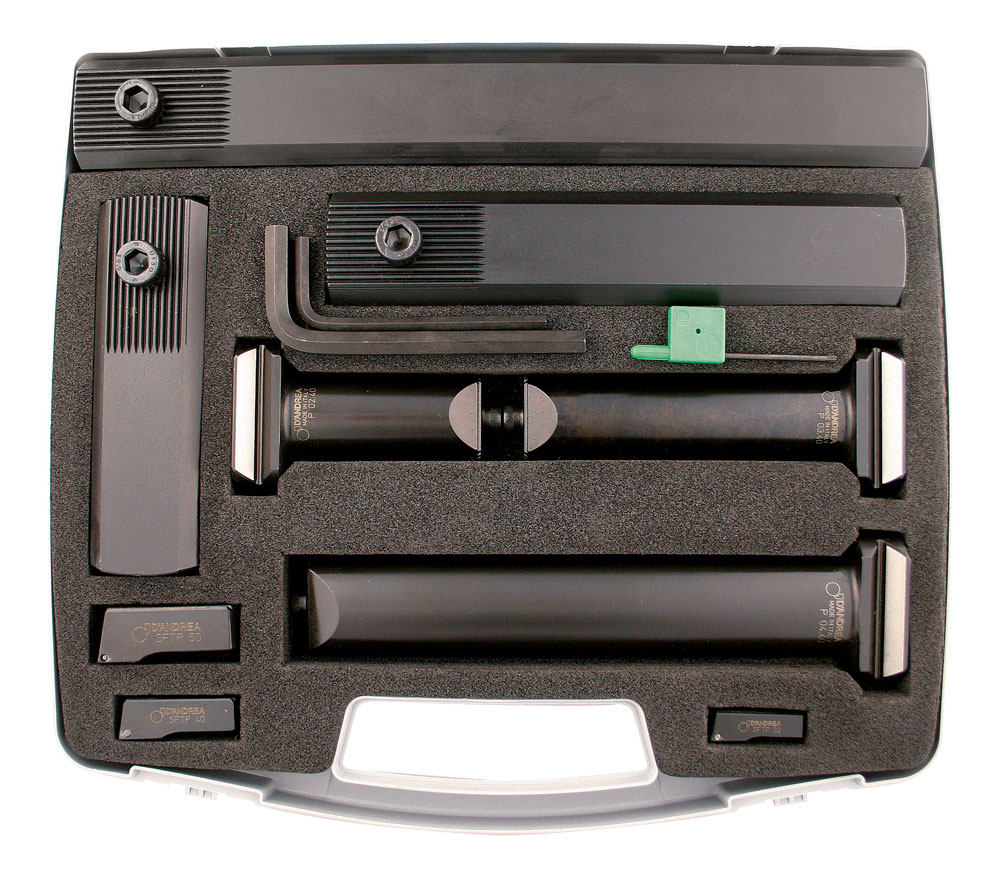

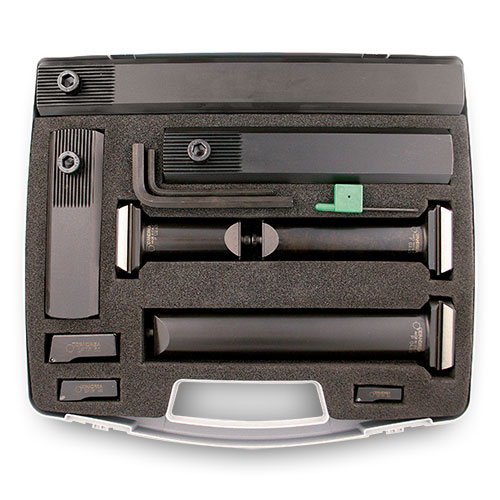

- Contents:
- (1) P02.40, (1) P03.40, (1) P04.40
- (1) PS11.40, (1) PS12.40, (1) PS13.40
- (1) SFTP32, (1) SFTP40, (1) SFTP50
EDP |
CODE Description 1 |
REF. Description 2 |
DRANGE Bore Dia. Range |
|
|---|---|---|---|---|
| 3240214 | K03TRM80/125 | 655012500030 | 1.417-16.142 |
