Series: K01 TRM 50/80 - K01 TRM 80/80

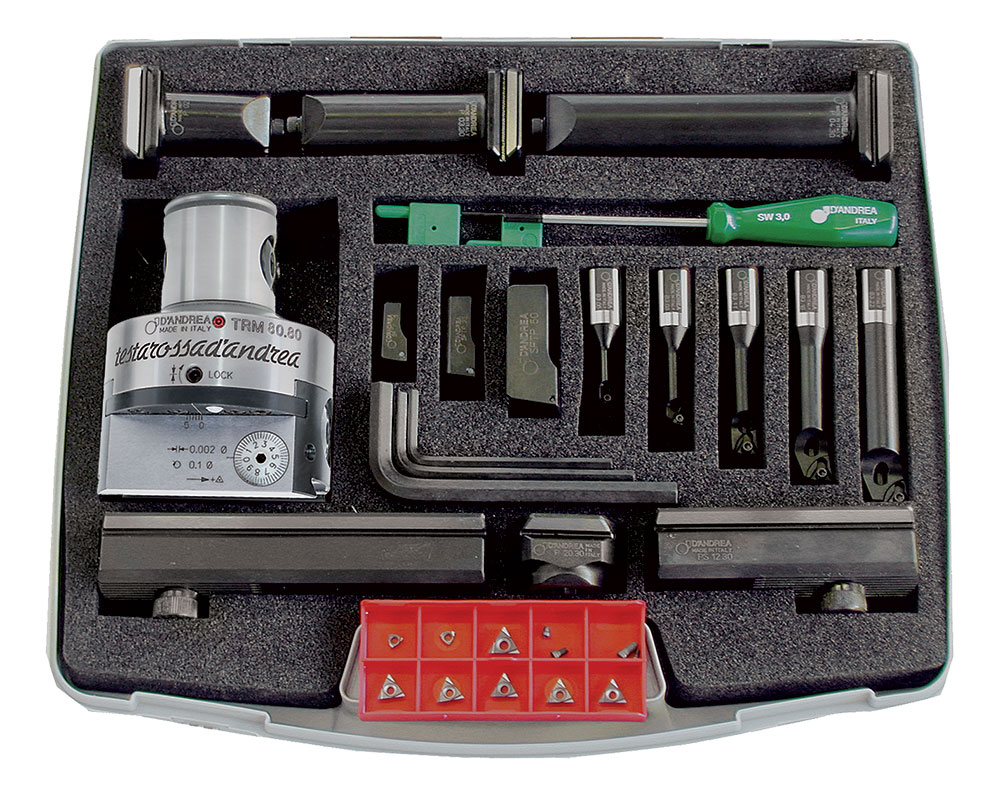

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Dia. Range: .236 - 8.661"
- (6.0mm-220.0mm)
- Contents:
- (1) TRM50/80 or TRM80/80
- (1) B3.06
- (1) B3.08, (1) B3.11, (1) B3.16, (1) B3.22
- (1) P20.30, (1) P02.30, (1) P03.30, (1) P04.30
- (1) PS12.30, (1) PS13.30
- (1) SFTP25, (1) SFTP32, (1) SFTP50
- (5) TPGX 090202L, (1) TPGX 110302L
- (2) WCGT 020102L
EDP |
CODE Description 1 |
REF. Description 2 |
DRANGE Bore Dia. Range |
|
|---|---|---|---|---|
| 3240097 | K01TRM50/80 | 655005010802 | 6-220 | |
| 3240098 | K01TRM80/80 | 655008010802 | 6-220 | |
| 3240212 | K01TRM50/80INCH | 655005060802 | .236-8.661 | |
| 3240213 | K01TRM80/80/INCH | 655008060802 | .236-8.661 |
