Series: K01 TRM 50/63 - K01 TRM 63/63
Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Dia. Range: .236" - 6.102"
- (6.0mm-155mm)

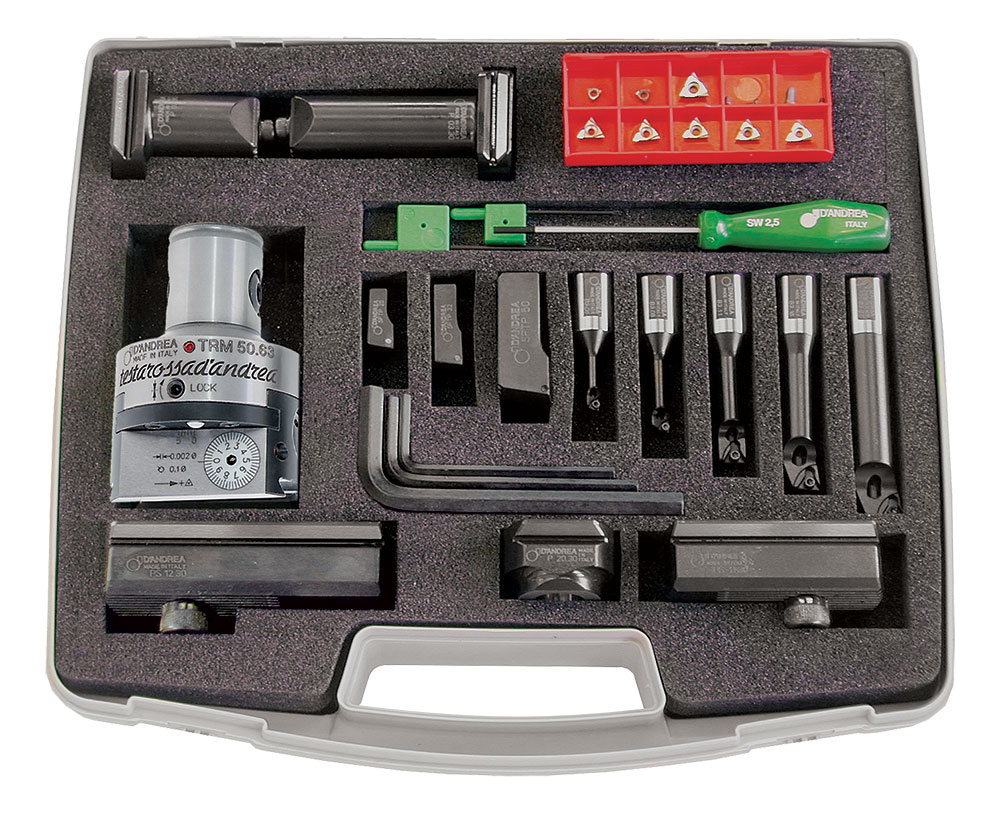

- Contents:
- (1) TRM50/63 or TRM63/63
- (1) B3.06, (1) B3.08, (1) B3.11, (1) B3.16, (1) B3.22
- (1) P20.30, (1) P02.30, (1) P03.30
- (1) PS11.30, (1) PS12.30
- (1) SFTP25, (1) SFTP32, (1) SFTP50
- (5) TPGX 090202L, (1) TPGX 110302L
- (2) WCGT 020102L
EDP |
CODE Description 1 |
REF. Description 2 |
DRANGE Bore Dia. Range |
|
|---|---|---|---|---|
| 3726902 | K01TRM50/63 | 655005010633 | 6-155 | |
| 2937107 | K01TRM63/63INCH | 655006360633 | .236-6.102 | |
| 3726903 | K01TRM63/63 | 655006310633 | 6-155 | |
| 2937106 | K01TRM50/63INCH | 655005060633 | .236-6.102 |
