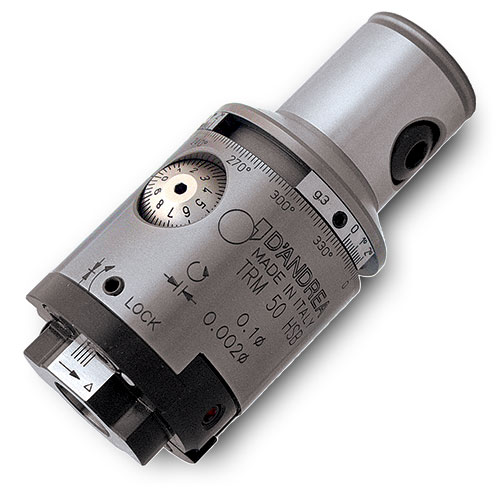

Series: TRM 50 HSB - Balanceable Finish Boring Head
Product Series Features:
- Ø.100-.860"
- Inch & Metric Dial Increments
- D’Andrea MHD compatible
EDP |
ANSI Number |
ISO Number |
DCN Cutting Dia. Min. |
DCX Cutting Dia. Max. |
CCMS Connection Code Machine Side |
BD Body Dia. |
DCON Connection Dia. |
CBDP Connection Bore Depth |
L Projection Length |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 3240045 | 455105000701 | TRM50HSB | 0.100 | 0.860 | MHD 50 | 1.97 | Bore 16 mm | 0.830 | 68.5 mm | |
| 3240171 | 455105060701 | TRM50HSB/INCH | 0.100 | 0.860 | MHD 50 | 1.97 | Bore 16 mm | 0.830 | 2.7 |
