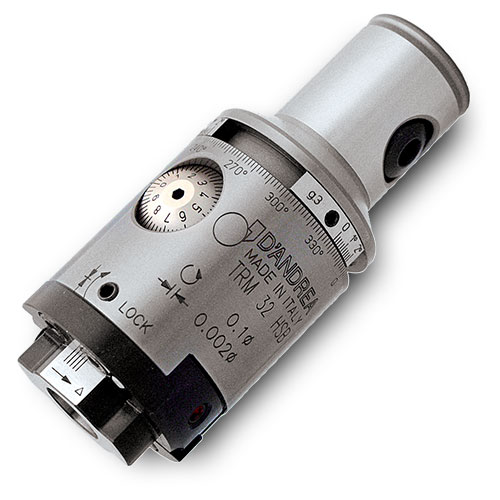

Series: TRM 32 HSB - Balanceable Finish Boring Head
Product Series Features:
- Ø.098-.708" (2.5-18.0 mm)
- Inch & Metric Dial Increments
- D’Andrea MHD compatible
EDP |
ANSI Number |
ISO Number |

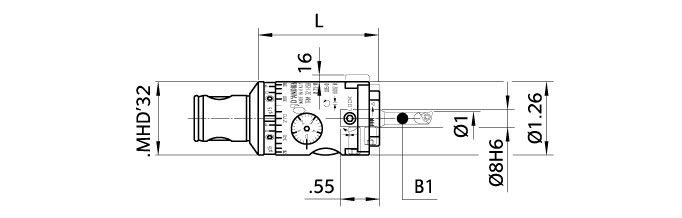

DCN Cutting Dia. Min. |
DCX Cutting Dia. Max. |
CCMS Connection Code Machine Side |
BD Body Dia. |
DCON Connection Dia. |
CBDP Connection Bore Depth |
L Projection Length |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 3240928 | 455103200531 | TRM32HSB | 2.50 mm | 18.00 mm | MHD 32 | 1.26 | 8 mm Bore | 0.550 | 2.4 | |
| 3212375 | 455103260531 | TRM32HSBINCH | 0.098 | 0.708 | MHD 32 | 1.26 | 8 mm Bore | 0.550 | 2.4 |
