Series: 23J2G - 90° End Cap (Weldon-Putnam)

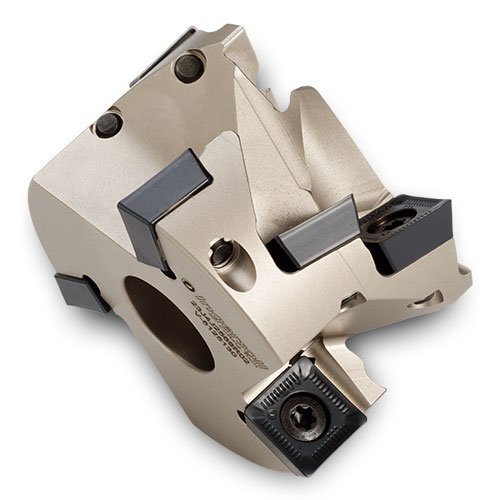

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø2.000" (End Cap)
- All Eff. / RH Helix
- 16 mm Insert with 4 indexes
- Insert corner: .031", .062", .093", .125" R
EDP |
Part Number |
DC Cutting Dia. |
APMX Depth of Cut Max. |
LUX Usable Length Max. |
LF Functional Length |
OAL Overall Length |
ZNF Face Insert Count |
ZNP Peripheral Insert Count |
NOF Flute Count |
KAPR Cutting Edge Angle |
CCMS Connection Code Machine Side |
CSP Coolant |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3008164 | 23J2G-20EC172R01 | 2.000 | 0.950 | - | - | 1.00 | 4 | 2 | 4 | 90.0 | NA | No |
Notes:
- **Note, product series is OBSOLETE**
- Total Number of Inserts = ZNF + ZNP.
