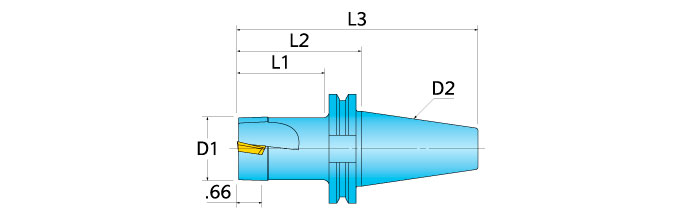

Series: 12J1B - 90° End MIll (V-Flange)

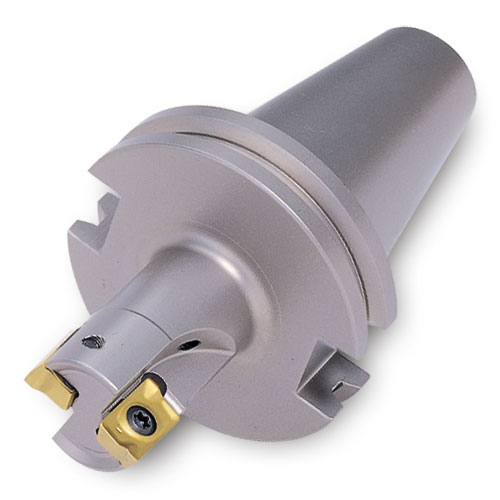

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø1.00 - 1.50" (V-Flange)
- .60" Depth of cut
- 16 mm Insert with 2 indexes
- Insert corners: .015" .031" .062" .093" .125" R
EDP |
Part Number |
DC Cutting Dia. |
LF Functional Length |
ZEFF Eff. Teeth |
CCMS Connection Code Machine Side |
RMPX Ramp Angle Max. |
DXF File |
|
|---|---|---|---|---|---|---|---|---|
| 3009742 | 12J1B-1002529R01 | 1.000 | 2.50 | 2 | CAT40 | 5.4 | ||
| 3009743 | 12J1B-1202829R01 | 1.250 | 2.87 | 3 | CAT40 | 3.9 | ||
| 3009471 | 12J1B-1502829R01 | 1.500 | 2.87 | 3 | CAT40 | 3.0 |
Notes:
- **Note, OBSOLETE product series.
- Refer to the following for stocked alternatives:
- HiPos+ series 12J1R or 12J1G
- HiPosTrio series 1KJ1G
- DiPosDuo series 1TJ1F or 1TJ1G
