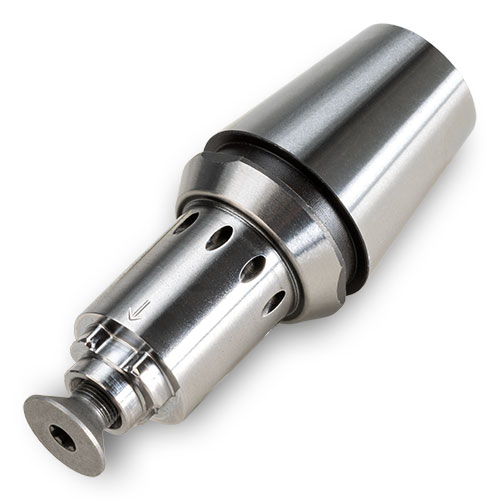

Series: ER*L - Solid ER, Neck Relief
Product Series Features:
- Solid ER
- MultiSurfer Connection
- Neck Relief
- Coolant Options
- Strong and precise Pilot, Screw & Tri-Lobe Drive Connection
EDP |
Part Number |
CCMS Connection Code Machine Side |
CCWS Connection Code Workpiece Side |
LB Body Length |
LF Functional Length |
BD Body Dia. |
OAL Overall Length |
CNSC Coolant Entry Style Code |
CXSC Coolant Exit Style Code |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6241451 | ER20LPSA-20 | ER20 | Multi-Surfer LP | 0.787 | 1.125 | 0.512 | 2.200 | 1 | 1, 3 | NA | NA | NA | |
| 6241452 | ER20LQSA-20 | ER20 | Multi-Surfer LQ | 0.787 | 1.125 | 0.590 | 2.200 | 1 | 1, 3 | NA | NA | NA | |
| 6241453 | ER25LPSA-20 | ER25 | Multi-Surfer LP | 0.787 | 1.145 | 0.512 | 2.300 | 1 | 1, 3 | NA | NA | NA | |
| 6241454 | ER25LQSA-20 | ER25 | Multi-Surfer LQ | 0.787 | 1.145 | 0.590 | 2.319 | 1 | 1, 3 | NA | NA | NA | |
| 6241455 | ER25LRSA-20 | ER25 | Multi-Surfer LR | 0.787 | 1.145 | 0.670 | 2.362 | 1 | 1, 3 | NA | NA | NA | |
| 6241456 | ER32LPSA-20 | ER32 | Multi-Surfer LP | 0.787 | 1.185 | 0.512 | 2.535 | 1 | 1, 3 | NA | NA | NA | |
| 6241457 | ER32LQSA-20 | ER32 | Multi-Surfer LQ | 0.787 | 1.185 | 0.590 | 2.555 | 1 | 1, 3 | NA | NA | NA | |
| 6262195 | ER32LRSA-20 | ER32 | Multi-Surfer LR | 0.787 | 1.185 | 0.670 | 2.598 | 1 | 1, 3 | NA | NA | NA | |
| 6241458 | ER40LRSA-20 | ER40 | Multi-Surfer LR | 0.787 | 1.268 | 0.670 | 2.834 | 1 | 1, 3 |
