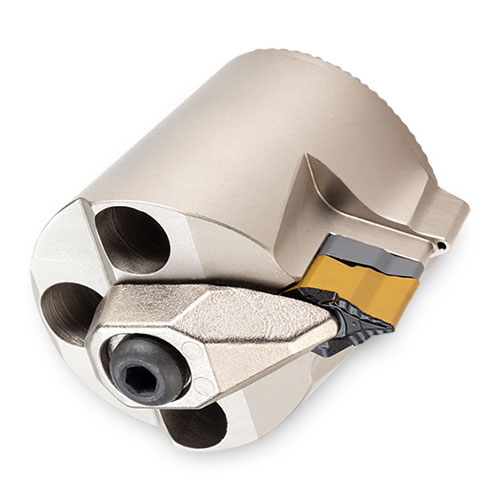

Series: DTC-TZXNN-TB - External Modular Head
Product Series Features:
- Negative ZNMV_Y-BF Inserts
- Neutral Lead, Multidirectional Clamp
- T-Modular Connection, Y-Axis Cutting
- 40 mm
- High Pressure Coolant
EDP |
Part Number |
DCONMS Connection Dia. Machine Side |
LF Functional Length |
WF Functional Width |
CSP Coolant |
HAND Hand |
MIID Master Insert Identification |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6229439 | DTC-D40Y-TZXNN-1410-TB | 40.00 mm | 30.00 mm | 32.00 mm | Yes | Neutral | ZNMV141008Y-BF |
